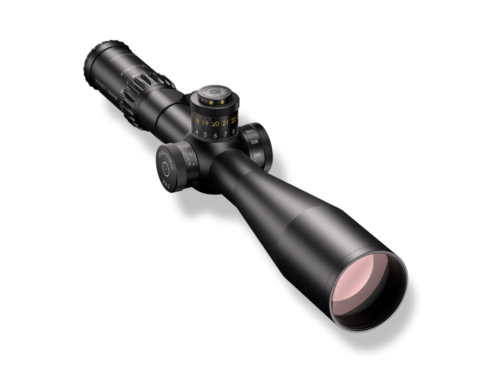

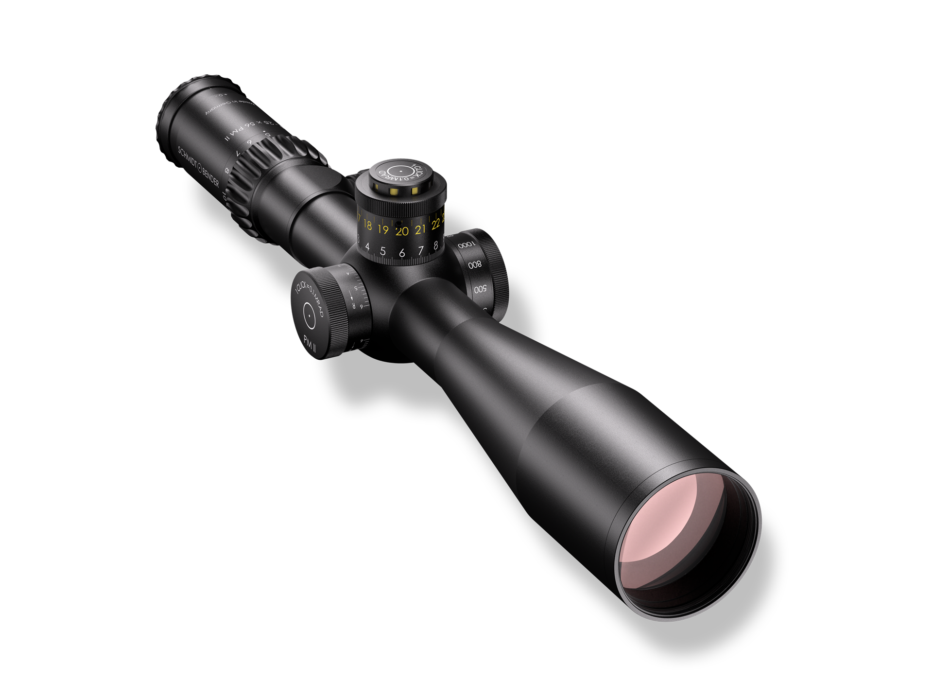

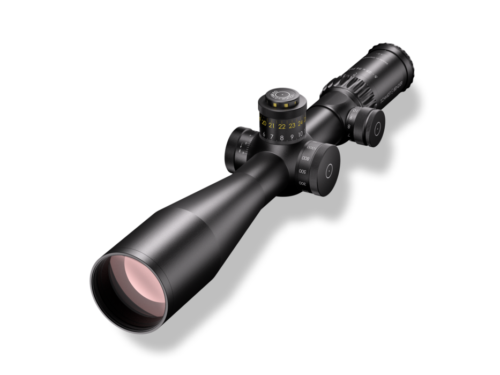

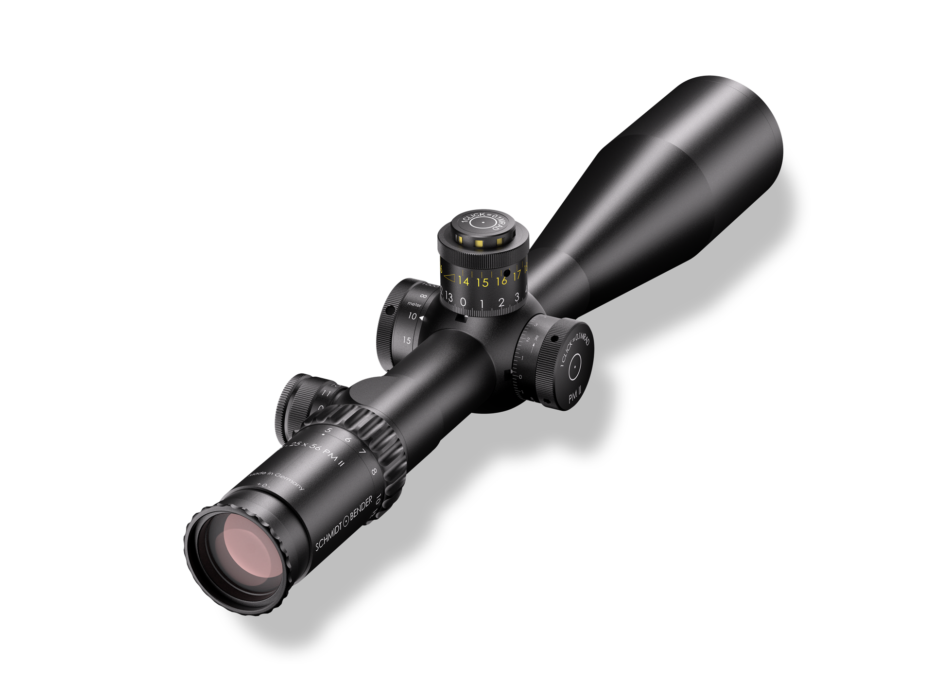

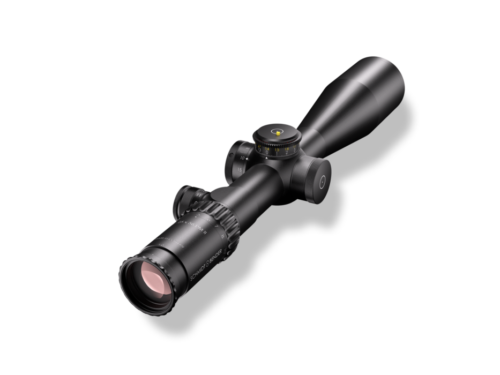

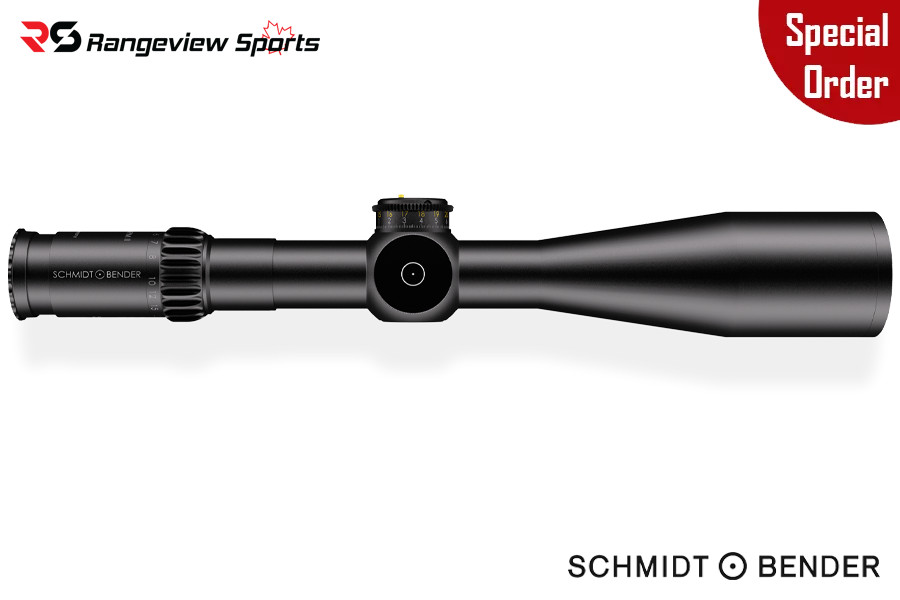

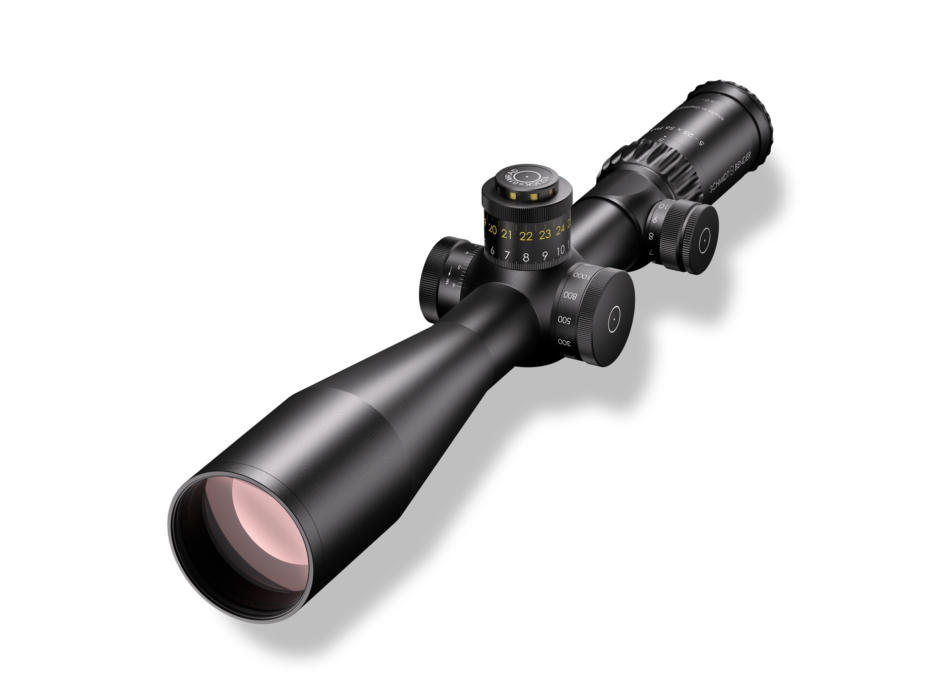

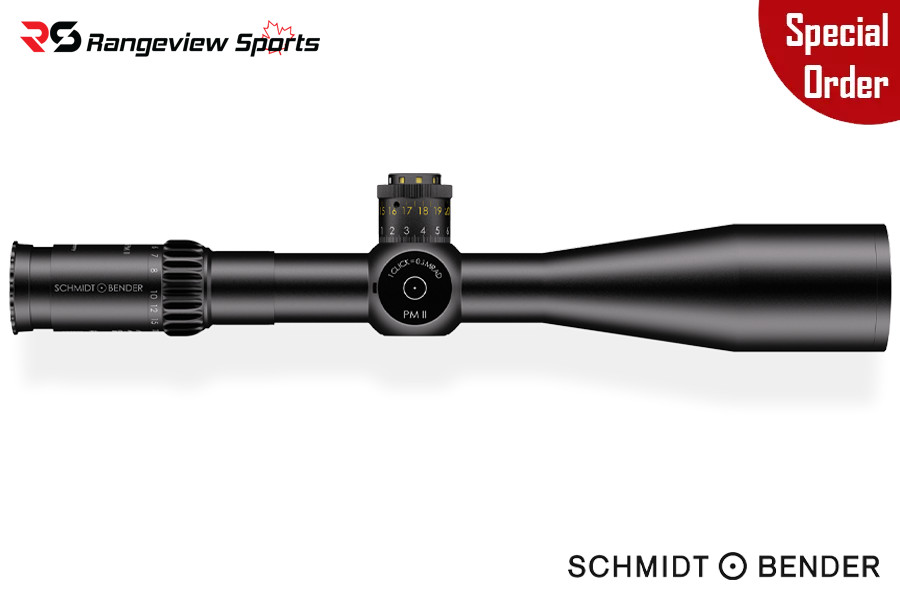

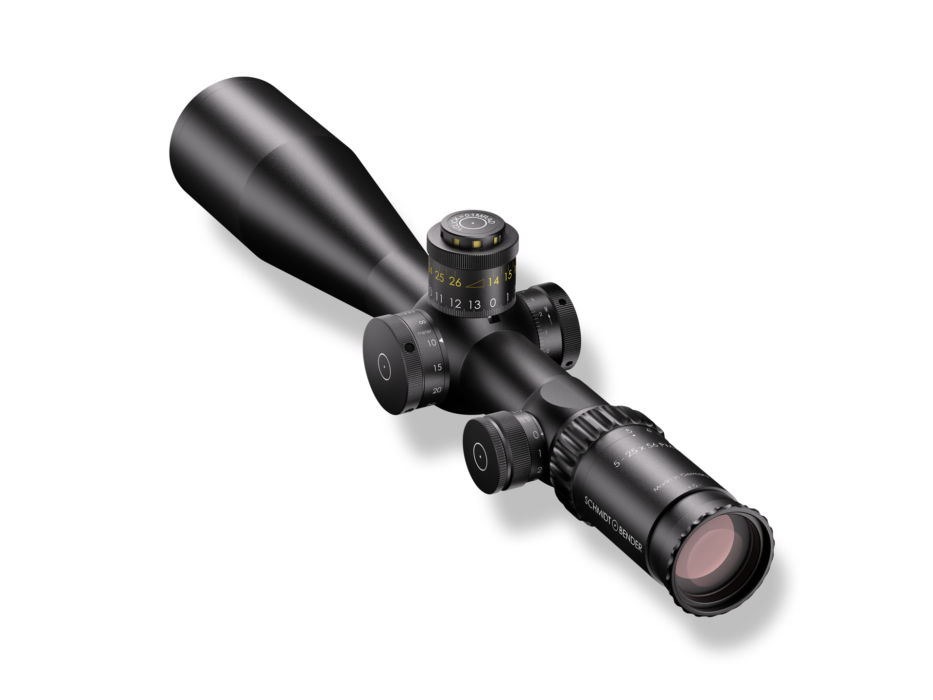

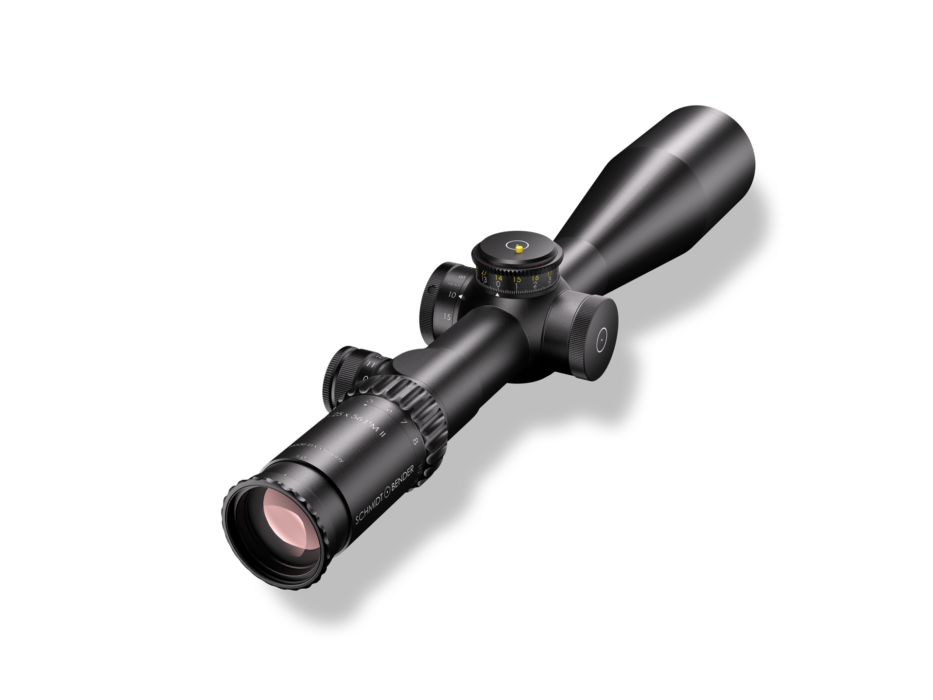

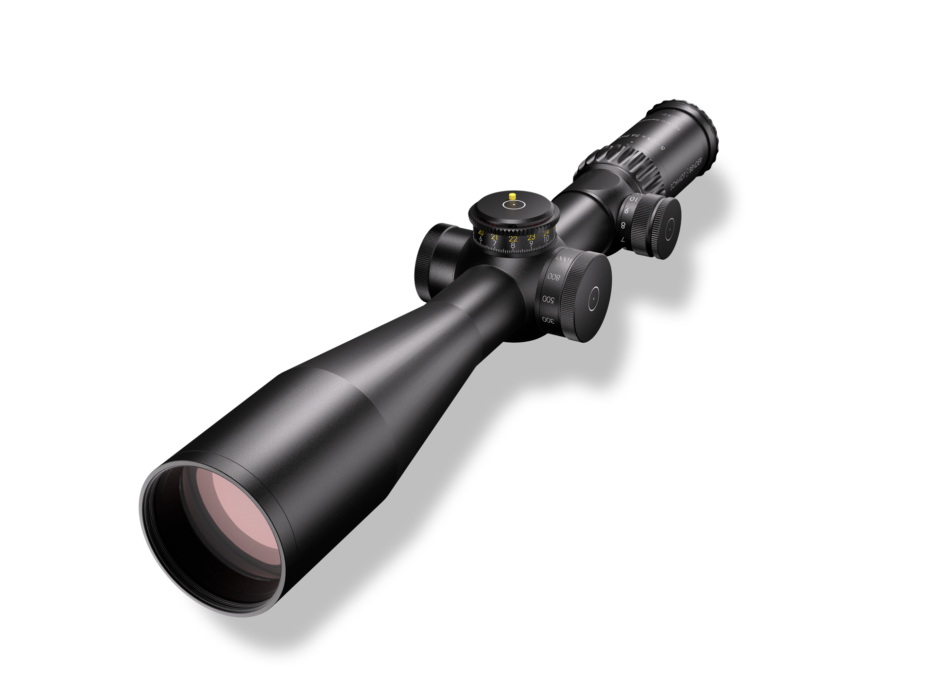

*Special Order* Schmidt Bender PMII 5-25x56mm FFP Riflescope in various configurations
Deposit: 100% of the Full Price
Deliver Time: Unknown
Note: Please contact Rangeview Sports if you would like to special order this product, of which waiting time is uncertain. Deposit amount will be charged during checkout, and balance due at time of shipping. A restocking fee of 50% of the deposit amount is charged for the order cancelled by its purchaser.
********** Schmidt Bender Scope Purchase Guide **********
DT (Double-Turn)
MT (Multi-Turn)
ST (Single-Turn)
cw (clockwise)
ccw (counter clockwise)
MTC = More Tactile Clicks Function
The MTC function provides a significantly stronger tactile feedback at every full mrad increment, enabling fast and secure corrections without taking the eye off the target.
ZC = Zero Click
The Zero Click provides a distinct, tactile click at the zero, giving the shooter a clear reference to the starting position and enabling quick and reliable adjustments without taking the eye off the target.
SZC = Sub-Zero Clicks
Sub-Zero Clicks are located below the engraved “0” and allow rapid adjustments when using accessories such as suppressors, when environmental conditions change, or when engaging targets at shorter distances.
CT = Capped Turret
The protective screw on cap for the turret reliably prevents against unintentional adjustments.
LT = Locking Turret

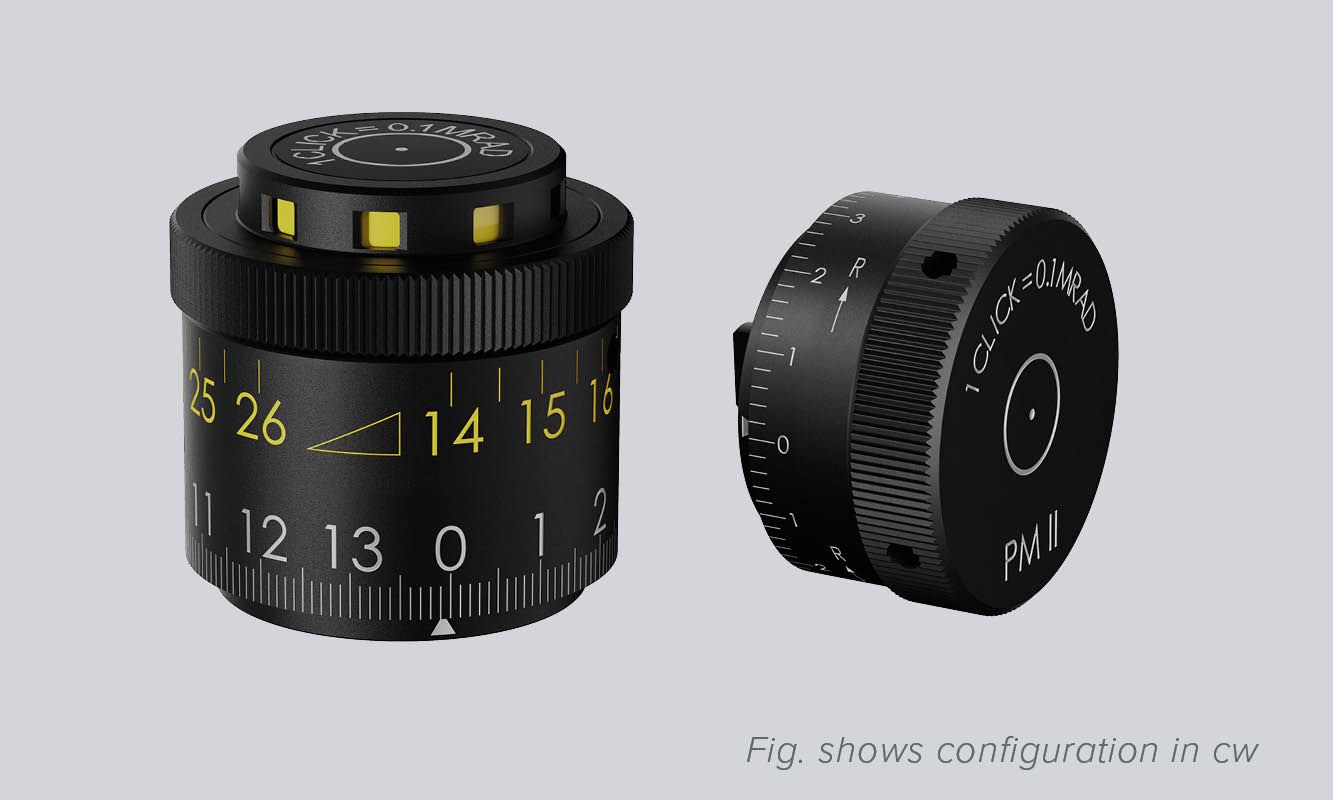

Turret Options:
– DT / ST:
- Click value: 0.1 mrad
- Adjustment range elevation: 26 mrad
- Adjustment range windage: ±6 mrad

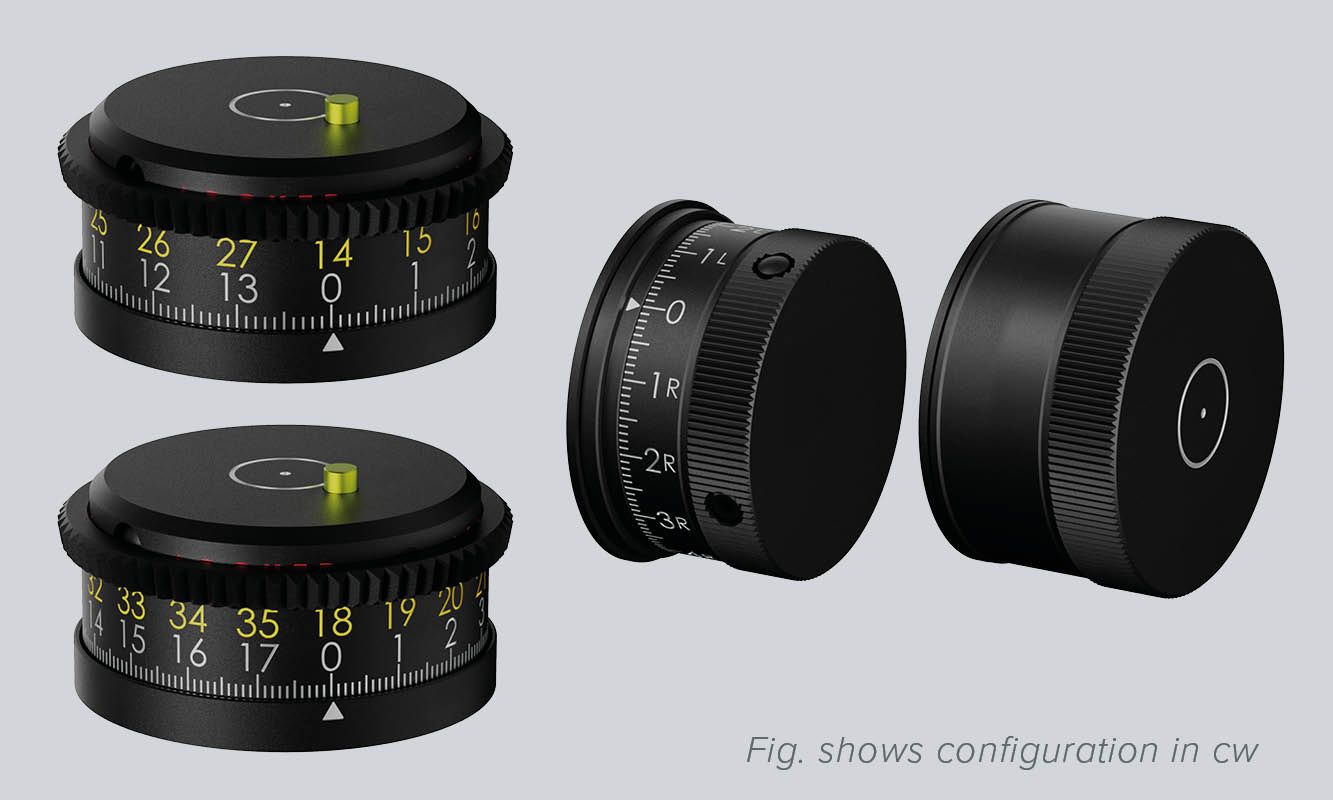

– DT27 MTC LT / ST ZC CT:
- Click value: 0.1 mrad
- Adjustment range elevation: 27 mrad
- Adjustment range windage: ±6 mrad
Reticles:
FD7 SFP
GR²ID
L3
The L3 reticle combines a clean, minimalistic layout with a precisely centered, finely adjustable illuminated center dot. It is designed for hunters and shooters who demand maximum accuracy, even in challenging lighting conditions. The illuminated center dot enables fast and precise target acquisition – whether in backlight, at dusk, or when aiming at dark game against a cluttered background. Thanks to its open design, the field‑of‑view remains unobstructed at all times, making the L3 reticle an ideal choice for precise shots both day and night.
S_B-Datasheet-L3-FFP-2_5-10×56-Klassik.pdf
GEN II
********** END OF GUIDE **********

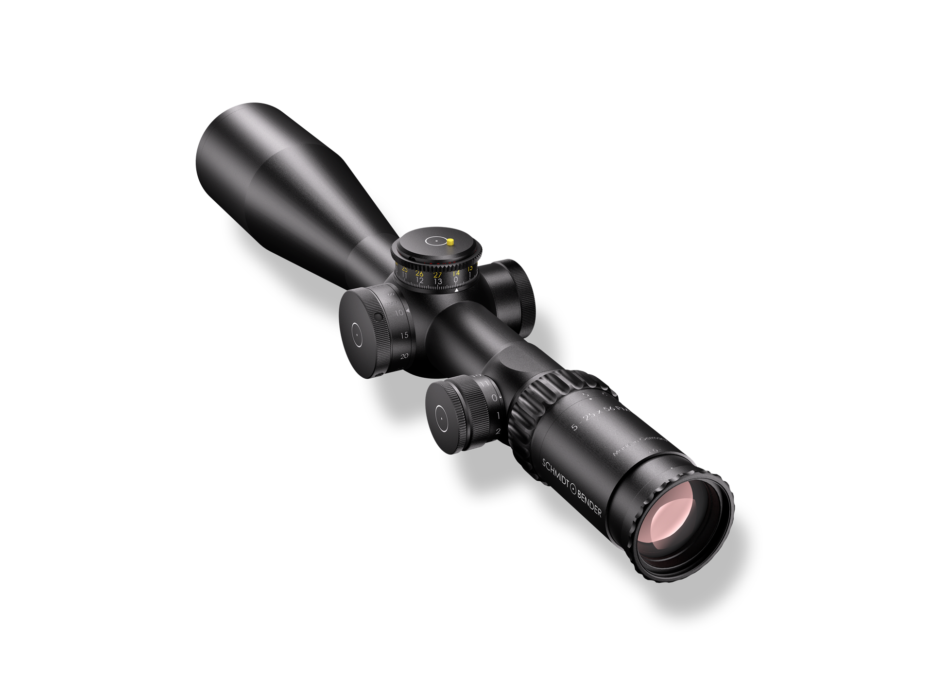

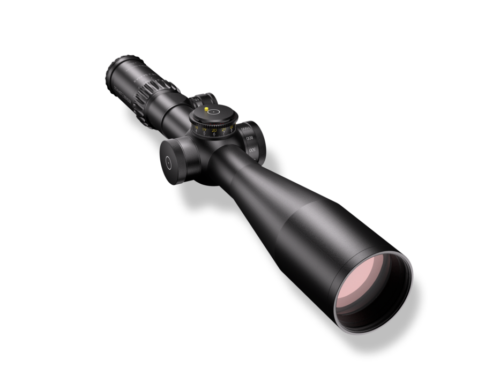

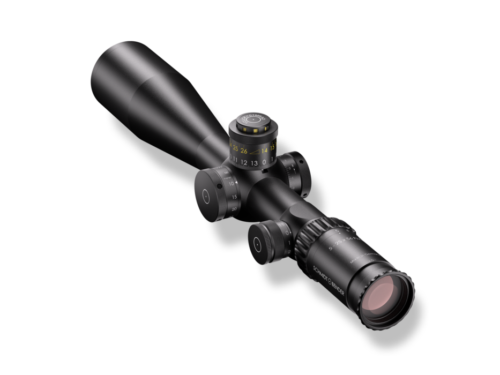

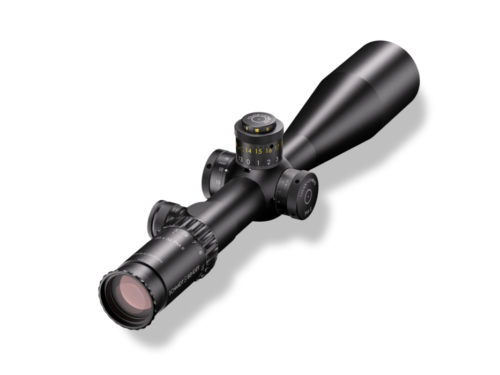

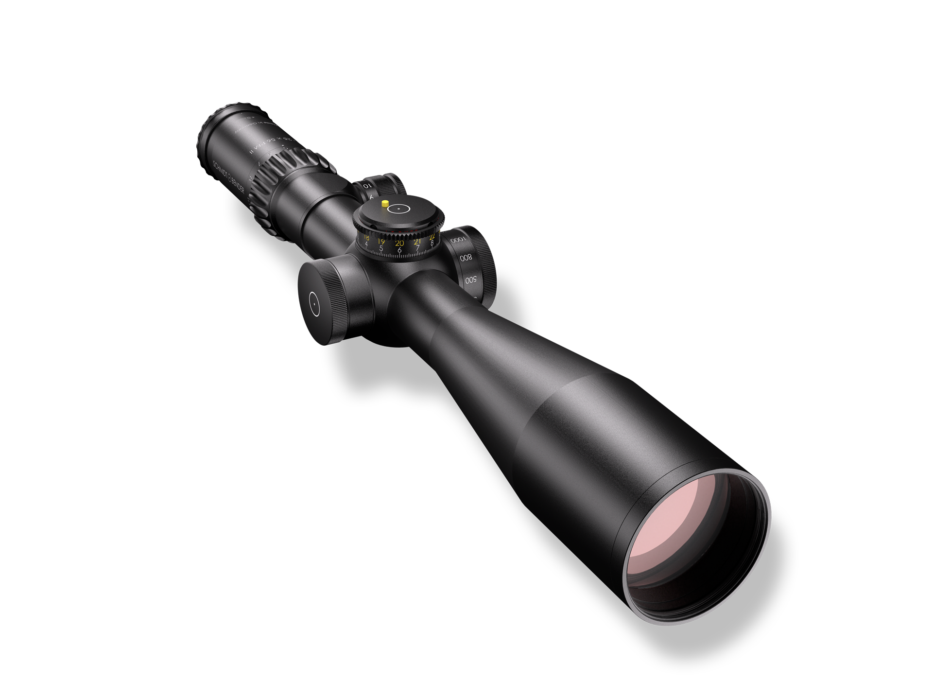

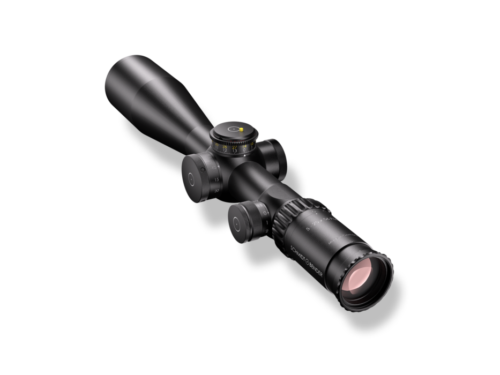

Unrivalled to this day – the 5-25×56 PM II is one of Schmidt & Bender’s most popular riflescopes.
For more than 15 years, it has been an established part of the equipment of police, military and special units worldwide. In 2011, for example, it won the prestigious USSOCOM ‘Precision Sniper Rifle’ tender. Today, it continues to prevail against its imitators in tenders.
Optically, it has been the gold standard among 5-25×56 scopes for almost two decades now. The parallax can be precisely adjusted from 10 meter. The high-performance design of the 5-25×56 PM II is being continuously developed. The new magnification adjustment is made of high-quality aluminum and is compatible with the ‘Throw Lever’. The metal eyepiece end ring with internal thread is used for attaching accessories, offers easy-grip diopter adjustment and allows the high-quality Tenebraex flip covers to be fitted.
This riflescope allows snipers to use it from medium to extreme distances of several kilometers.
Technical Data
| Length (mm | in) | 420 | 16.535 |
| Main tube diameter (mm | in) | 34 | 1.34 |
| Weight (g | oz) | 1,065–1,125 | 37.57–39.68 |
| Magnification | 5–25 |
| Internal objective diameter (mm | in) | 56 | 2.205 |
| Outer diameter objective (mm | in) | 62 | 2.441 |
| Outer diameter ocular (mm | in) | 45.8 | 1.803 |
| Exit pupil diameter (mm | in) | 11.0–2.3 | 0.43–0.09 |
| Field‑of‑view (m/100 m) | (ft/100 yd)* | 5.3–1.5 | 15.9–4.5 |
| Parallax adjustment (m | yd) | 10 – ∞ | 10.94 – ∞ |
