This is a Sale Item that requires the $20 Sale-Item Flat Rate at Checkout if delivery is needed.

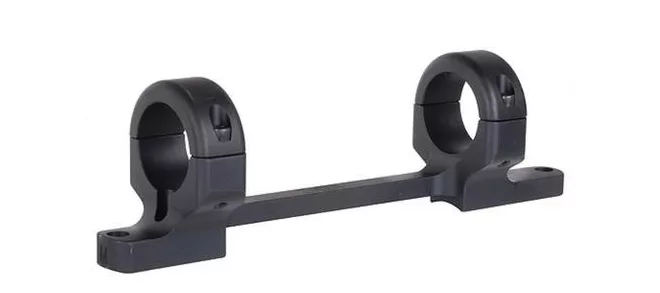

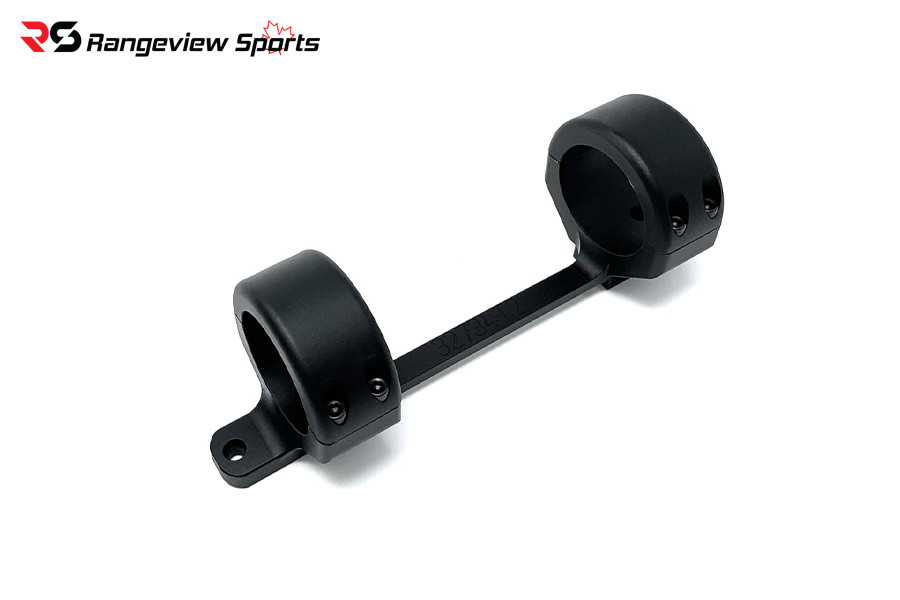

Mossberg 100ATR, Patriot; 4X4
Mount fits right hand firearms.
Long Action
Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both screws use a 7/64″ Allen wrench.
Outside to outside of rings is 4.65″. Standard rings are .63″ wide and have 2 screws per ring. 4 Hole to hole spacing dimensions are .86″, .4.70″, .60″. Height of mount from top of receiver to centerline of scope tube is – low .98″, medium 1.11″, high 1.23″.
Short action
Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both screws use a 7/64″ Allen wrench.
Outside to outside of rings is 4.46″. Standard rings are .63″ wide and have 2 screws per ring. 4 Hole to hole spacing dimensions are .86″, .4.17″, .60″. Height of mount from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, high 1.19″.
