*Special Order* Tangent Theta 3-15x50mm Long Range Hunter Riflescope
Deposit:Â 100% of the Full Price
Deliver Time: Unknown
Note: Please contact Rangeview Sports if you would like to special order this product. Deposit amount will be charged during checkout, and balance due at time of shipping. A restocking fee of 50% of the deposit amount is charged for the order cancelled by its purchaser.

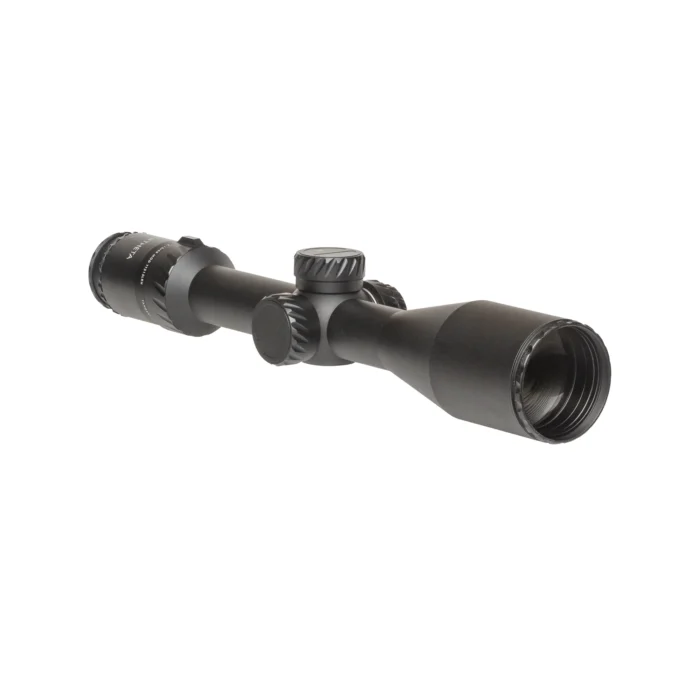

Introducing the new Tangent Theta model TT315LRH 3-15x50mm Rifle Telescope. The Long Range Hunter is a variable power telescopic rifle sight that can be rapidly adjusted for ballistic and environmental corrections by means of externally calibrated adjustment dials. The reticle is situated in the first focal plane, allowing reticle subtentions to remain constant over all magnification ranges.

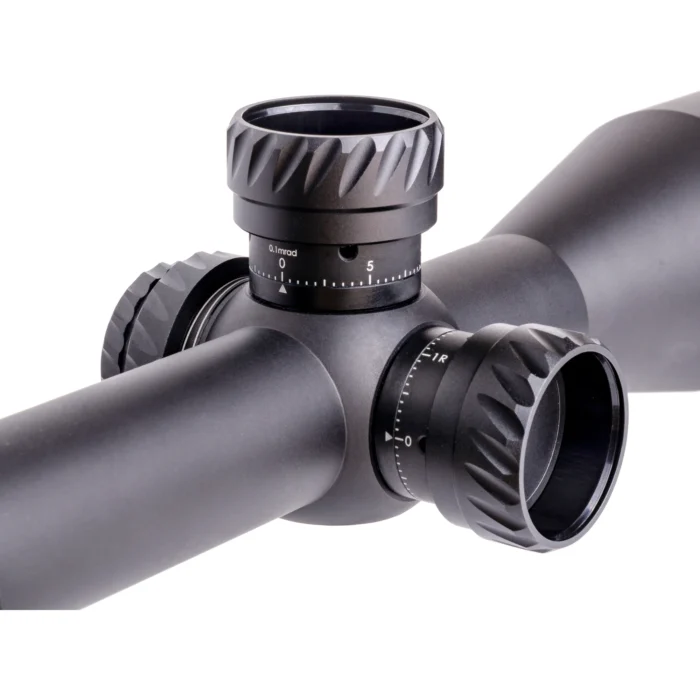

The rifle telescope consists of a single piece main tube that encloses the optical components. All mechanical adjustments of the sight are controlled by the elevation and windage mechanisms at the top and right side of the tube. Illumination and parallax are controlled by the dial on the left side of the telescope tube. Magnification may be adjusted by the fluted ring forward of the eyepiece and diopter settings may be made at the rear of the eyepiece.
The device incorporates a 50mm objective lens and 32mm eyepiece, which provide excellent image quality in low light levels. It also provides for rapid target acquisition and identification at short, intermediate, and long ranges. The sight incorporates an LED for reticle illumination under low light conditions. The reticle consists of a cross hair with auxiliary stadia lines and dots to assist in shooting at various ranges.
Every TT315LRH ships with a set of Tenebraex flip covers included
FEATURES
- Rapid Access Elevation and Windage
- Auto Isolation Feature (AIF)Â Learn More
- Locking rapid adjust diopter
- Rev indication on Elevation
- Low profile parallax (side adjust and Illumination control)
- No field of view occlusion in shooting position
- Single piece tube
- Includes Tenebraex flip covers
- Includes battery cap tool
| Feature | Specification |
|---|---|
| Magnification | 3x-15x |
| Length | 347mm |
| Width | 74mm |
| Height | 62mm |
| Weight | 763g |
| Tube diameter | 30mm |
| Objective bell diameter | 57mm |
| Objective lens diameter | 50mm |
| Eyepiece diameter | 45mm |

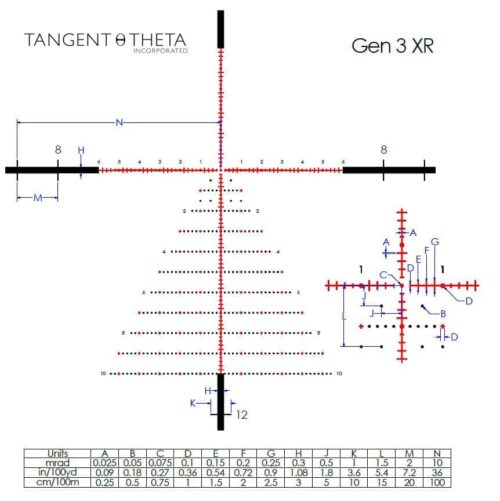

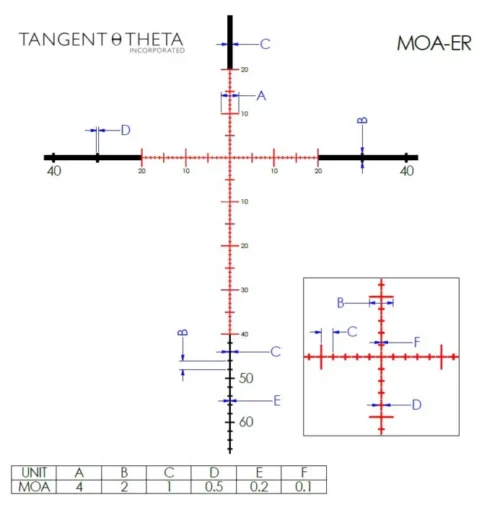

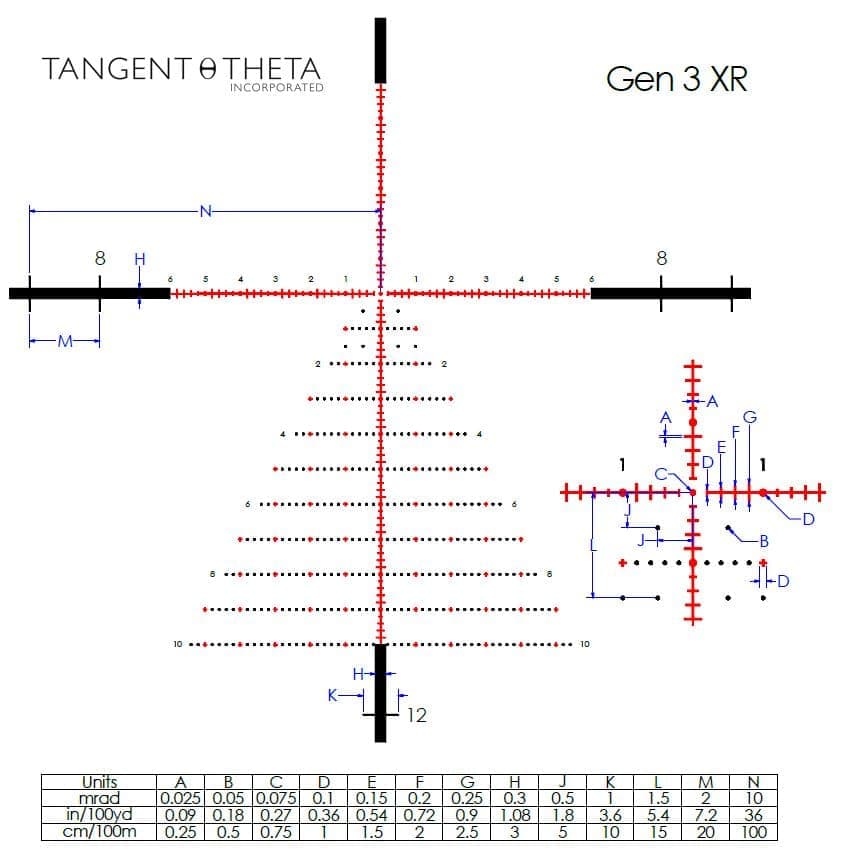

| Reticle options | MRAD, MoA, MoA-ER, Gen 3XR |
| Field of View @ 3x | 7.3 degrees (12.8m @ 100m) |
| Field of View @ 15x | 1.6 degrees (2.8m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 3x | 11.5mm |
| Exit pupil @ 15x | 3.5mm |
| Re-zero mechanism | Twin Setscrew |
| Total Adjustment Range | |
| Elevation | 18 mrad (60 MoA) |
| Windage | +/- 12 mrad (+/- 40 MoA) |
| Working Adjustment Range | |
| Elevation | 11.7 mrad /39 MoA |
| Windage | +/- 2.9 mrad (+/- 9.5 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, red, 11 settings |
| Battery type | CR2032 3v lithium |
| Exterior finish | Type II Anodized, matte black |
| Environmental | |
| Waterproof: | 4 hours @ 5 meters |
| Shockproof: | 1000g’s @ 10,000 cycles |
| Standard accessories | Tenebraex lens covers, laminated retical subtention card, battery removal disc |
