*Special Order* MDT SRS-XF Skeleton Rifle Folding Stock
Deposit: 100% of the Full Price
Delivery Time: Unknown
Note: Please contact Rangeview Sports if you would like to special order this product. Deposit amount will be charged during checkout, and balance due at time of shipping. A restocking fee of 50% of the deposit amount is charged for the order cancelled by its purchaser.
DETAILS

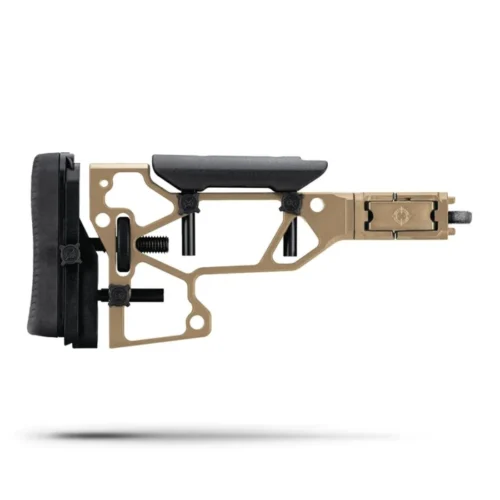

The MDT Skeleton Rifle Stock XF (Folding) Buttstock was designed to provide the shooter with best-in-class strength and ergonomics, with an emphasis on adjustability and comfort.
Length of pull (LOP) can be easily adjusted and fine-tuned with the thumbwheel, and locked in place with thumb screws or set screws (both included). The buttpad can be adjusted up and down as well as canted left or right, to form fit the shoulder pocket of any shooter.
Achieving the perfect cheek weld is a breeze, simply loosen the set screws and adjust height before locking the set screws back in place.
If you’re looking for a folding option for the Standard or Short Skeleton Rifle Stock (Fixed Interface), we do have a solution for you over on our folding buttstock adapters page.
SPECIFICATIONS
- Shortened body to maintain proper LOP with integrated folder
- Optional Cheek rest thumbwheel is sold separately as it interferes with the buttstock folding over the bolt
- CNC machined from 6061-T6 aircraft grade aluminum
- Skeletonized body providing robust structure
- Thumb wheels for toolless adjustment of length of pull (LOP)
- Thumb screws and set screws (both included and interchangeable) to lock position in place
- Cheek rest can be adjusted up/down (height), side-to-side and canted
- Buttpad can be adjusted in and out (LOP) as well as up and down and can be canted
- Integrated bolt cut-out in cheek rest for easy bolt removal
- Attachment point for 2.5” rail on bottom surface
- Three QD flush cup sling mounts on either side
LENGTH OF PULL (LOP) & COMPATIBILITY CHART
|
|
TAC21 |
LSS (requires carbine to fixed adapter) |
LSS-XL |
HS3 |
ESS |
ACC |
|
SRS-XF Folding (ESS & ACC) |
Not Compatible |
Not Compatible |
Not Compatible |
Not Compatible |
13.75″-14.75″ |
13.75″-14.75″ |
ACTION |
FOLDS OVER BOLT |
NOTES |
|
Big Horn TL3 |
YES |
|
|
Browning X-Bolt SA |
YES |
|
|
Browning X-Bolt LA |
YES |
|
|
Howa 1500 SA |
YES |
|
|
Howa 1500 LA |
YES |
|
|
Lithgow 102 SA |
YES |
|
|
Rem 700 SA |
YES |
|
|
Rem 700 LA |
YES |
|
|
Ruger American SA |
NO |
Need to install on non-bolt side |
|
Savage Axis SA |
YES |
Need to remove thumb screws |
|
Savage Axis LA |
YES |
|
|
Savage SA |
YES |
Need to remove thumb screws |
|
Savage LA |
YES |
|
|
Savage LA CIP (3.850) |
YES |
|
|
Stiller TAC 338 LA |
YES |
|
|
Tikka T3 SA |
YES |
|
|
Tikka T3 LA |
YES |
|
|
Winchester XPR SA |
YES |
|
