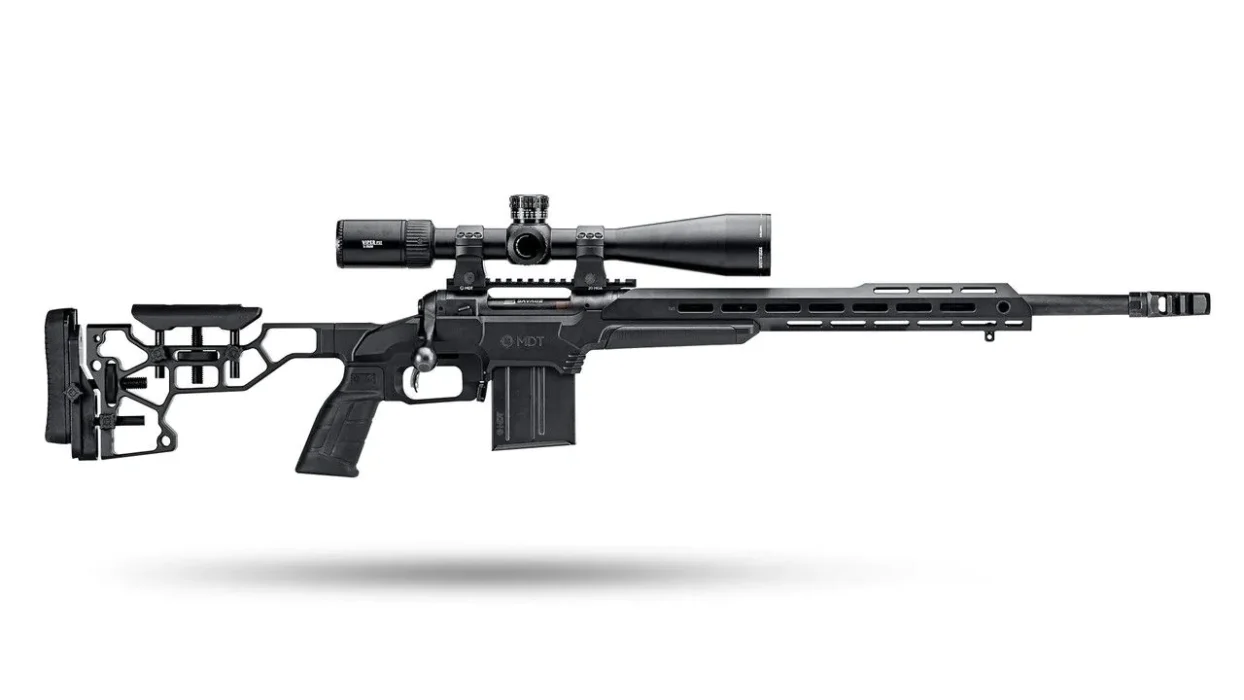

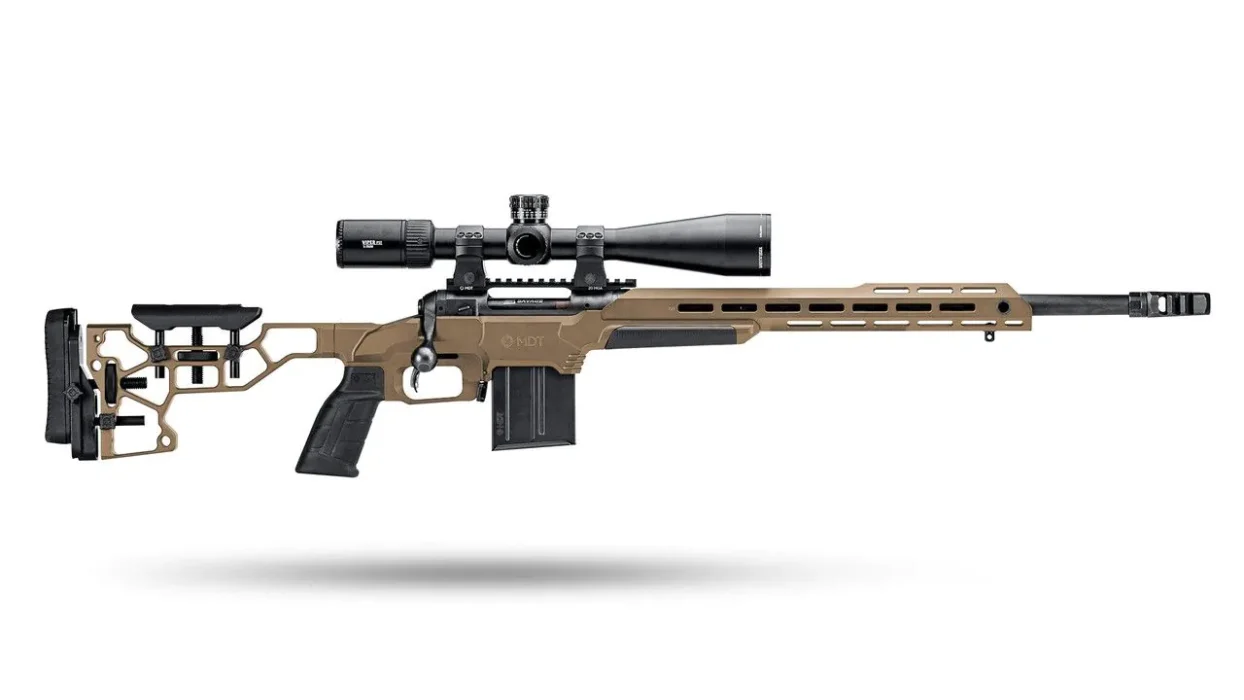

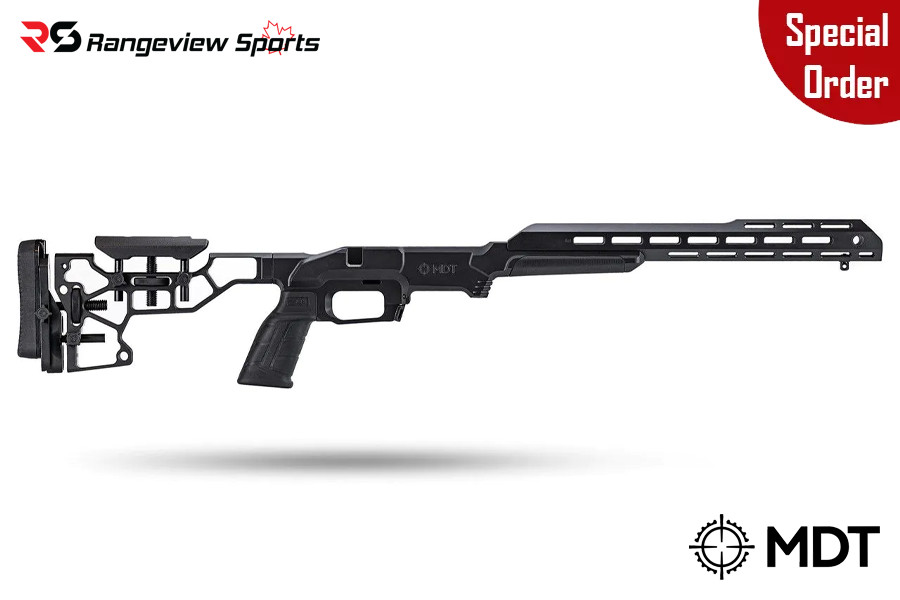

*Special Order* MDT ESS Chassis System
ELITE SNIPER SYSTEM
The MDT ESS Chassis System introduced a lot of features that have since driven design decisions on MDT chassis moving forward, such as the M-LOK forend, ambidextrous magazine latch, and the XTN buttstock interface that allows room for your hand to sit naturally.
The main focus of the ESS from the very beginning was to create the most ergonomic chassis available. A lot of attention was put into every little detail to ensure that it feels comfortable and natural to hold and operate. During the design process, the chassis was carved into foam to find the right shapes and ensure the ergonomic goal. From the octagonal forend to the angled polymer foregrip, and the wide ergonomic thumb rest, this truly is a masterpiece to be held.
Another big focus is customizability. The enclosed M-LOK forend is available in 4 different styles; the included no rail forend, as well as optional carbon fiber, full rail, and partial rail forends. While the MDT ESS Chassis System comes with the MDT Pistol Grip – Elite, it’s also compatible with most other AR interface grips. The included MDT SRS-X Buttstock is also readily interchangeable with other XTN interface buttstocks, and can also be adapted to other interfaces using our own MDT Buttstock Adapters.

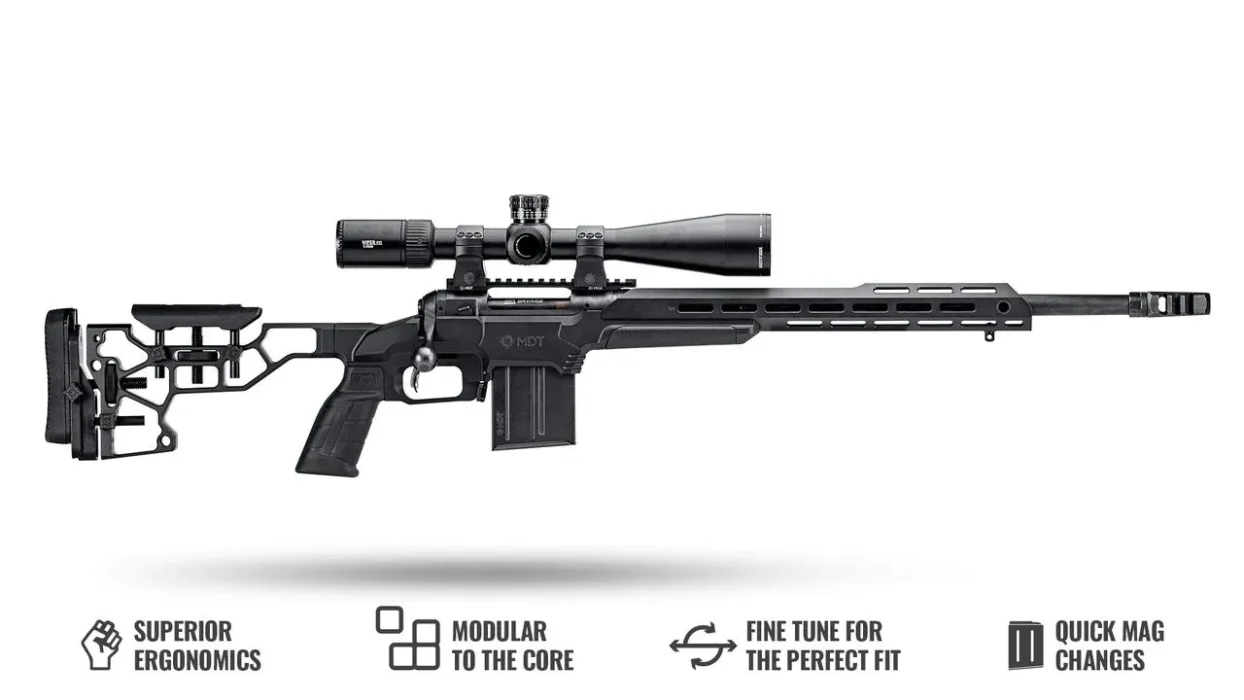

SUPERIOR ERGONOMICS
Designed with ergonomics as the main focus. A lot of attention went into every little detail to make it the most comfortable and natural feeling possible.
COMFORTABLE UNSUPPORTED SHOOTING
The integrated angled polymer hand rest lets you rest your hand comfortably in a more natural position rather than having to stretch your wrist. The octagonal shape of the enclosed M-LOK forend also allows for a much more comfortable grip without having to touch the potentially hot barrel.

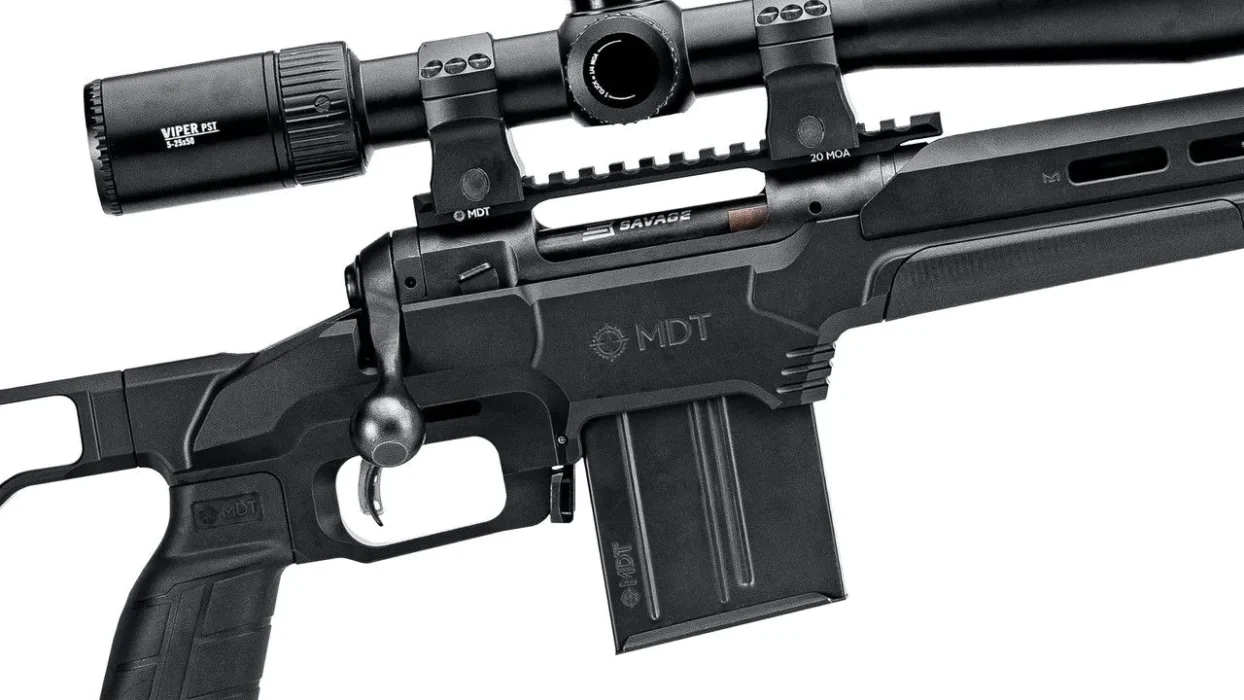

QUICK MAG CHANGES
Features an ambidextrous mag latch and flared magwell that guides the magazine into position without fumbling to find the sweet spot, enabling you to perform quick and easy mag changes and get back to shooting.
ERGONOMIC THUMB SHELF
THE XTN buttstock interface allows room for a wide ergonomic thumb shelf that enables a more comfortable and stable hand position on the grip, so you can easily cycle the bolt, change mags, and pull the trigger all without having to move your hand away from the grip.
FINE TUNE YOUR BUTTSTOCK
The included MDT SRS-X Buttstock is highly adjustable and enables you to make fine adjustments to the cheek rise height and cant, buttpad height, and length of pull. The MDT SRS-X Buttstock also supports additional weights such as the MDT Bag Rider, MDT Buttstock Weight, and MDT LOP Spacer Weight.
Features:
- INTERCHANGEABLE M-LOK FOREND
- INTEGRATED POLYMER FOREGRIP
- AICS MAGAZINE COMPATIBLE
- ERGONOMIC THUMB SHELF
- QD SLING MOUNTS ON BOTH SIDES OF FOREND
- AMBIDEXTROUS MAGAZINE LATCH
- MDT PISTOL GRIP – ELITE INCLUDED
- MDT SRS-X BUTTSTOCK INCLUDED
- INTEGRATED BARRICADE STOP
Specifications:
WEIGHT
4.5 Lbs
(Depending on selected buttstock and forend)
MATERIALS & FINISH
Hard anodized 6061 aluminum
Cerakote finish
LENGTH OF PULL (LOP)
13.4″ – 144″ with included buttstock
LENGTH
35″ – Chassis with included buttstock
GRIP COMPATIBILITY
MDT Pistol Grips / MDT Vertical Grips
AR-15 style grips
MAGAZINE COMPATIBLITY
AICS magazines
BUTTSTOCK INTERFACE
XTN Interface – Buttstock included
FOREND LENGTH
15″ depending on model
MAX BARREL DIAMETER
1.350″
Compatibility:
Remington:
- Remington 700 Short Action
Mag Length: Short Action AICS Pattern - Remington 700 Long Action
Mag Length: Long Action 3.715″ - Remington 700 Long Action CIP
Mag Length: Long Action 3.850″
Tikka:
- Tikka T3/T3X Short Action
Mag Length: Short Action AICS Pattern - Tikka T3/T3X Long Action
Mag Length: Long Action 3.560″
