SomoGear PEQ-15 UHP Full Powder, Visible Green Laser/IR Laser/IR Illuminator – Black
Visible Laser + IR Laser + IR illuminator.
Co-Aligned VIS & IR laser, Zeroable Well.
Compatible with All Night Vision Goggles.
For Airsoft use, not recommended with real firearm
SomoGear PEQ-15 IR Laser Illuminator UHP Full Power
The SomoGear AN/PEQ-15 Aiming Laser IR Illuminator (ATPIAL) is designed to be used with night vision goggles devices at night for airsoft games, milsim simulation and cosplay photography, it is most popular improved version aiming laser, it integration of co-aligned VIS and IR aiming lasers, also combined with IR illuminator, adjustable and focusable beam range, it is small, lightweight, easy to use, set the new standard in the airsoft field. SomoGear try the best to satisfy the major airsoft clubs and airsoft players.
- Brand: SOMOGEAR
- Fits for picatinny rail MIL-STD-1913 (.835″)
- Durable polyamide material + Floating Fiber
- Compatible with prototype crane mil-spec plug
- Prototype hand feeling mode selector
- Zeroable aiming laser (When mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)
- Focusable & adjustable IR illuminator
- Rotating IR illuminator Focus Ring 288° degrees from spot to flood
- IR illuminator max beam range: ∠5.35° (at 30m distance, the max flood beam diameter is Ø2.8m)
- IR illuminator Pulse Rate programmable
- Co-aligned VIS & IR aiming lasers (at 30 meters distance they are less than 10cm apart)
- Compatible all generation Night Vision Goggles
- All the lens cover just an opaque cover, without diffuser function.
- 100% Brand New, For Airsoft use only, can’t hold on firearm!!!
- Ship from HongKong
TECHNICAL SPECIFICATIONS
Dimensions: 4.6” L x 2.7” W x 1.6” H
Weight: 6.1 oz (172g). without battery
Battery: 3V CR123A (not include)
Battery Life: >6 Hours (under all modes)
Visible Aim Laser
Output Power Low: ≤0.7mW
Output Power High: ≤4.9mW
IR Aim Laser
Output Power Low: ≤0.1mW
Output Power High: ≤1mW
IR Illuminator
Output Power Low: ≤1mW
Output Power High: ≤4.9mW

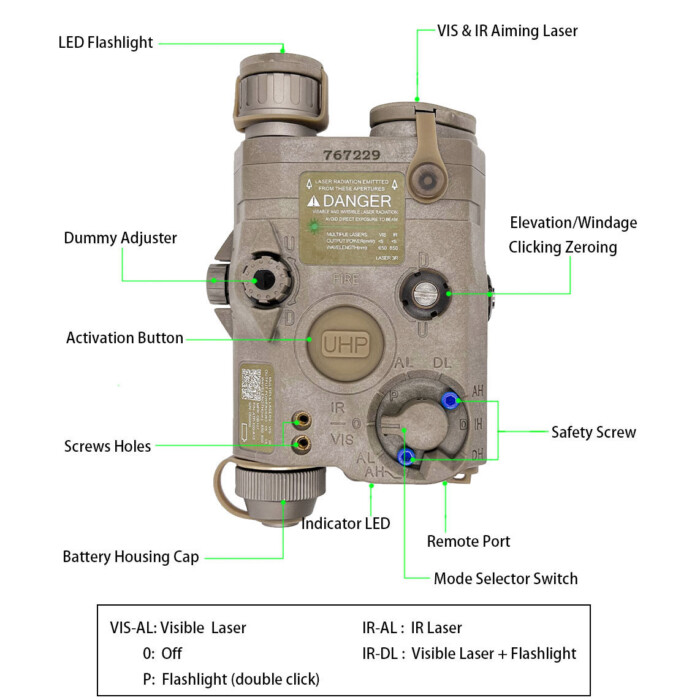

Configuration & Functions:
- Tan/ Black Case
- Focusable/Adjustable IR Illuminator
- Visible Laser (Green/Red)
- IR Laser
- Co-aligned VIS & IR Laser

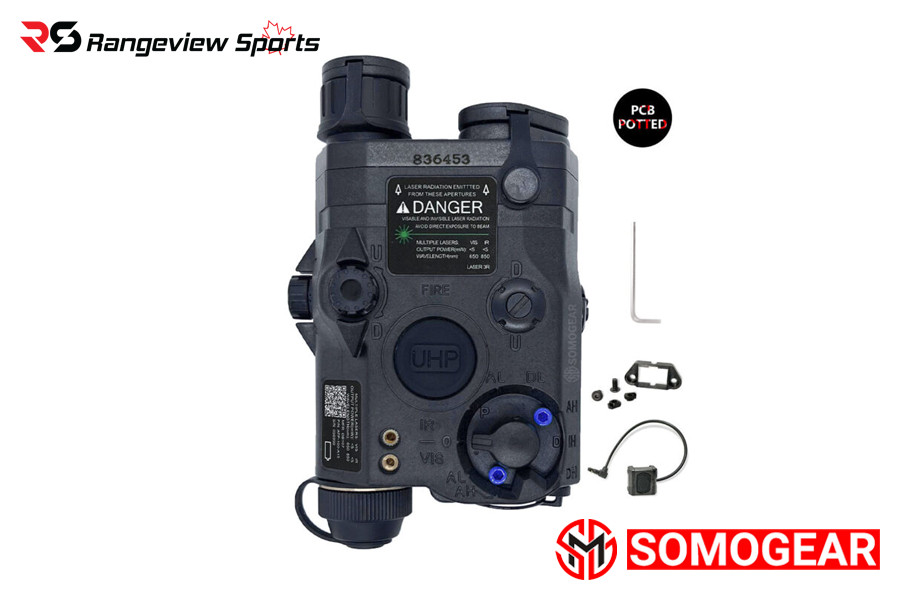

Package Include:
1 x PEQ-15 Aiming Laser Device
1 x Crane Switch
1 x Tan Sticker
1 x Black Sticker
Remark:
NOT include the battery (due to airmail restricted)
SomoGear IR Illuminator Pulse Rates Operation Manual
In addition to momentary and continuous modes of operation, the IR illuminator may be programmed to operate in pulse mode at either 1, 2, 4, 8 pulses per second.
To access the programming mode, the mode selector must be turned to the desired pulse rate within 5 seconds of pressing the FIRE button.
- With the Mode Selector turned to the P (program) position, hold down the FIRE button, orange indicator light up.
- Turn the Mode Selector to the IR position that corresponds to the desired pulse rate as shown in Table below.
- Release the FIRE button, the orange indicator flashing 2 times, and the pulse rate will be programmed, the set pulse rate will remain until it is programmed differently or canceled
How to cancel the Pulse Rate? How to Stay on the illuminator beam?
- Set the rate to 0 pulse per second
WARNING:
- Do not stare into the laser beams
- Do not look into the laser beams through binoculars or telescopes
- Do not point the lasers beams at mirror-like surfaces
- Do not shine the laser beams into other individuals’ eyes
Item Number: PEQ15-ILUUHP-GB-PCB
