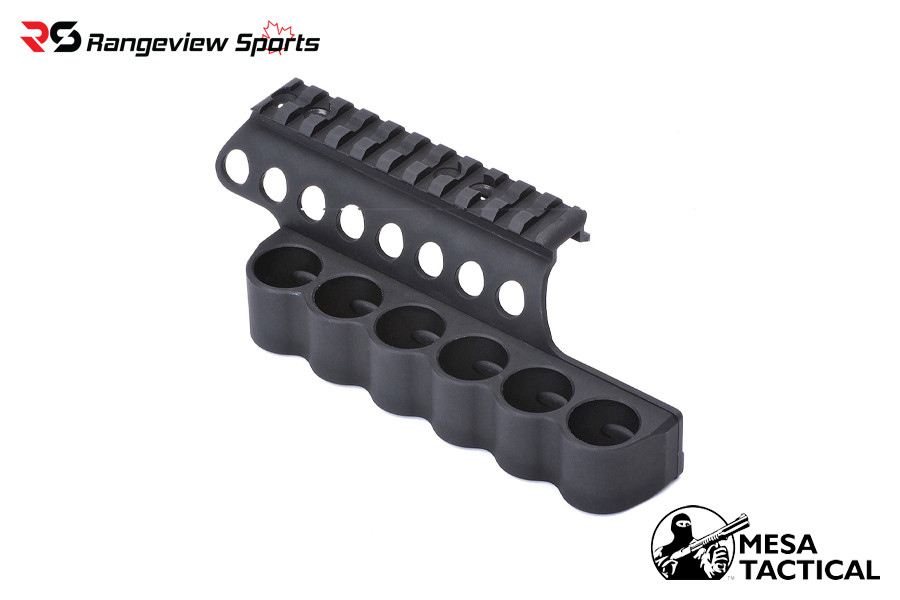

Mesa Tactical Sureshell Carrier and Rail for Moss 500, 6-Shell

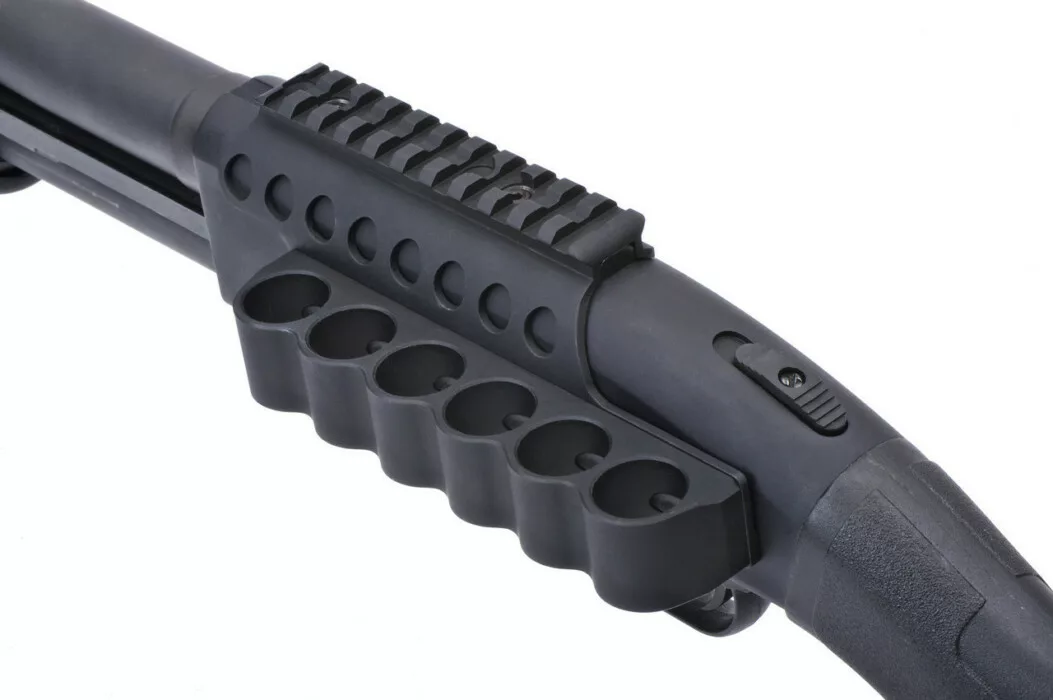

These SureShell shotshell carriers for the Mossberg 500 and 590 feature mounting brackets with integral top Picatinny sight rails. Using the top mounting screw holes found on Mossberg 500 and 590 shotguns made since 1997. The SureShell shotshell carriers are thus slung on the left side of the receiver, securely fastened at the top. No other shell carrier mounting method is as secure or looks as good.
The Picatinny rails are machined from aircraft grade 6061-T6 aluminum, which are mil-spec hard anodized and provide an extremely durable non-glare matte finish. The basic saddle rail design provides a robust mounting platform suitable for mounting a variety of optical sights, while a second version, which is nearly identical to the basic version, also includes a Mesa Tactical four, six, or eight shell SureShell shotshell carrier mounted on the left side of the receiver. Both versions are manufactured in compliance with MIL-STD-1913 Picatinny specifications, and no gunsmithing is required for installation.
The principle difference between one model of SureShell and another, aside from capacity, is the backing plate, which is designed to mount the carrier assembly on a particular model of shotgun. Side-mount SureShell shotshell carriers for Mossberg , Remington and Benelli M1 shotguns use the trigger group pin holes to secure the assemblies to the weapon; the Benelli M2 Tactical, Benelli M4/M1014, Benelli SuperNova Tactical and some Mossberg 500/590 versions take advantage of the factory-tapped rail mounting holes in the tops of these shotguns and include integrated Pictanny optics mounting rails; another version with an integrated rail is the saddle-mount design for Remington; SureShell Carriers for M4 SOPMOD stocks feature special hardware for attachment to these buttstocks; Adapter Mount SureShell shotshell carriers are designed to be attached to Mesa Tactical Telescoping Stock Adapter accessory mount points.
Specifications
- Compatibility: Mossberg 500
- Caliber: 12Ga
- Capacity: 6-Shell
- Width:14.00 (in)
- Height:4.00 (in)
- Depth:5.00 (in)
Item Number: 93630
Rangeview Sports Canada
Licensed Gun Shop in Newmarket, Ontario
Errol Kennedy (verified owner) –
I have a Mossberg 500 field combo & the product did not mount up without modifications. The instructions advise you to cut the necessary amount off the forend to avoid interference or to purchase a tactical forend. There’s roughly an 1 1/4” that would have to be trimmed. I decided to move the rail back towards the stock & only use two of the provided mounting screws with some thread lock instead of the four screws provided. One in the front & one in the back. I’ll probably get a tactical forend in the future & reposition. After some slight adjustments it looks great. Plenty of room for the safety still & looks great. Would have been 5 star if it would have mounted right up.
