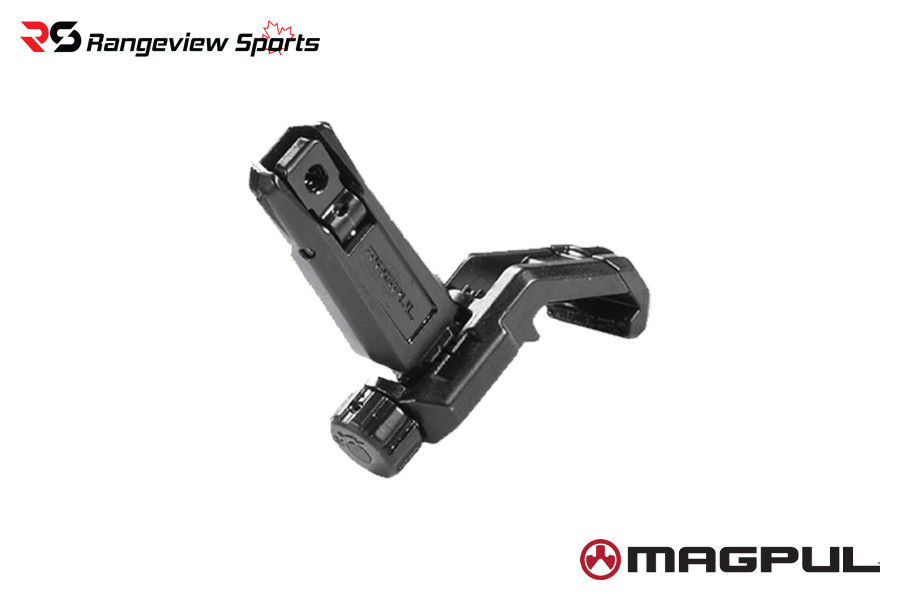

Magpul MBUS Pro Offset Rear Sight

Magpul MBUS Pro Offset Rear Sight

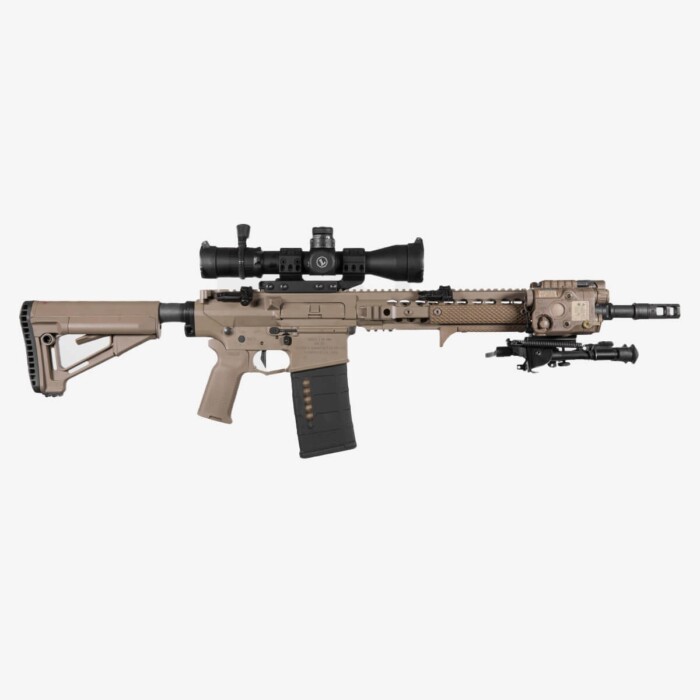

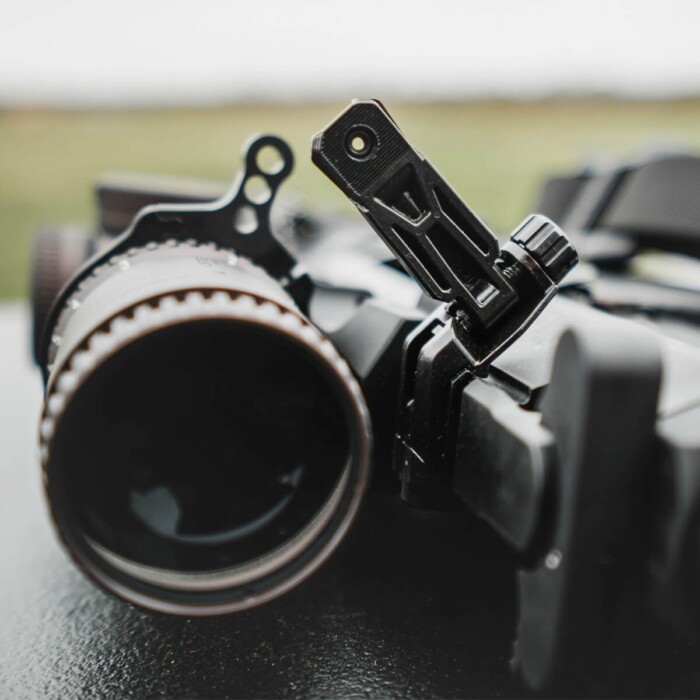

Building on the proven MBUS Pro platform, the MBUS Pro Offset Sights are part of an an effective aiming system to supplement magnified optics on M1913 Picatinny mounting surfaces. In the event of a damaged or nonfunctional primary optic, or a close target, rotating the rifle 45 degrees provides the shooter with a fully-featured iron sighting solution.

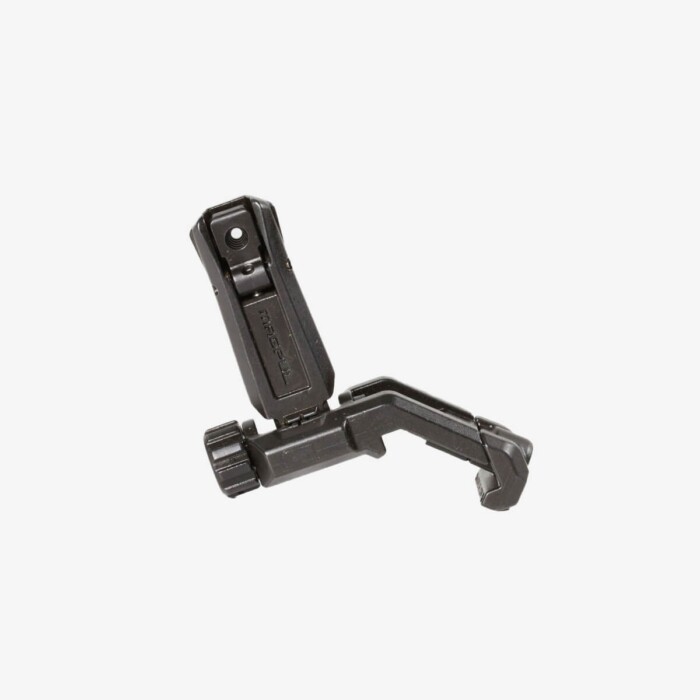

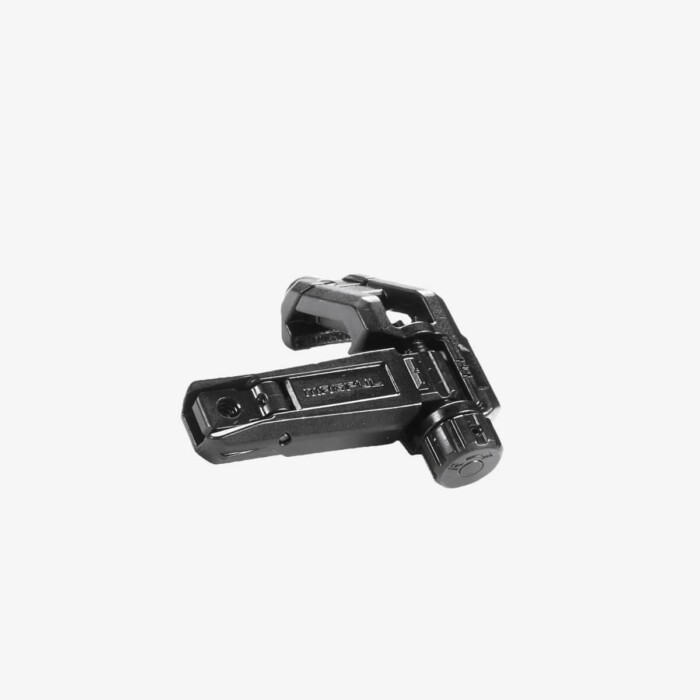

The MBUS Pro Offset Rear Sight features durable Melonited steel construction, positive detented lock up when deployed, tool-less windage adjustment for easy zeroing, dual rear apertures, and a low profile footprint to ensure compatibility and reduce interference with most rifle setups.

Made in the USA.

Features

• Case hardened and finished with Melonite QPQ™ for extreme resistance to wear and corrosion
• No tools required
• Positive detents in both the up and down positions
• Standard AR height over bore when deployed, 45 degree offset to the right-hand side
• Covers less than .66″ of top rail

Specifications

• Position: Rear
• Height above rail, stowed: 0.18 in.
• Length, stowed: 2.0 in.
• Weight, w/ hardware: 2.0 oz.

Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail

*NOTE: Only compatible with MBUS Pro OFFSET Front sight MAG525.

Windage Adjustment

• 0.5 MOA (0.566″/100m) per click with a 14.5″ sight radius
• 0.4 MOA (0.410″/100m) per click with a 20″ sight radius

Item Number: MAG526
