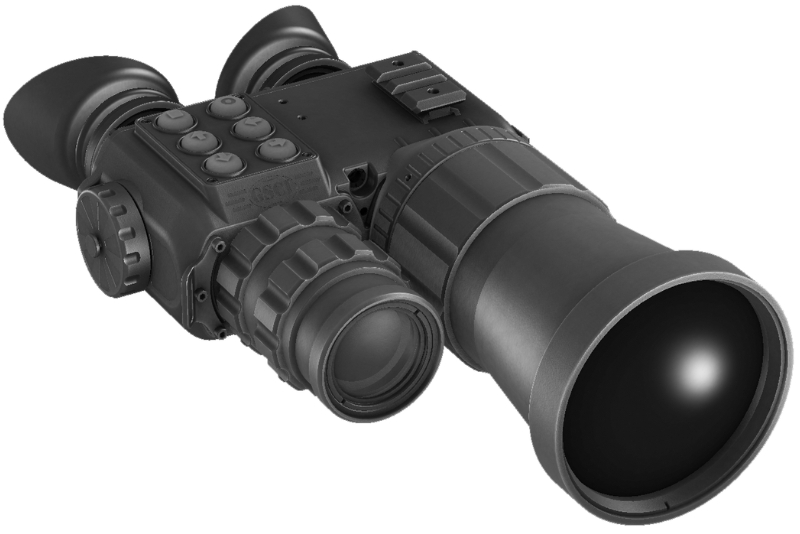

GSCI Ultra Long-Range Fusion [QUADRO-B100]

$24,390.00

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

Quantity In stock
Buy it now
MPN: QUADRO-B100
SKUHBV6-100-F1.3-640

GSCI Ultra Long-Range Fusion

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

The QUADRO-B100 is the augmented vision long-range binoculars for tactical surveillance and observation.

Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness.

The unit is rugged, lightweight, made of hard-anodized aluminum for added strength and shock resistance.

  • 100% Target Detection Capability
  • Dual-Eye, Long-Range Observation
  • Multi-Mode 24/7 Operation
  • High Situational Awareness
  • Auto-NUC: No Calibration Needed
  • Universal Power Solution

Specifications

OPTICAL PARAMETERS Optical Magnification 4X
Field of View 6.2x°4.7°
Focusing Range 3m .. Infinity
Eyepiece Dual
Eyerelief Min. 20mm
SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Digital Edge Detection Feature (DED) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Power Saving Mode Yes
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with Removable 32GB microSD Card
Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) 3330m / 4500m
Hand-Held Configuration Yes
Tripod-Mountable Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
THERMAL (LWIR)CHANNEL FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640×480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X
Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
DAY/NIGHT (VNIR) CHANNEL Sensor Type High-Performance CCD
Sensor Size 1/3”
Resolution 800×600
Sensitivity Up to 0.1Lux
Night Boost Mode Yes
VNIR Modes Day/Night



DISPLAY Internal Display Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800×600
Internal Display Contrast >10000:1
IMAGE FUSION Type Real-time, Electronic
Fused Channels LWIR + VNIR
Parallax Compensation Electronic, Adjustable
Heat Signature Opacity Range User Adjustable: 0% .. 100%
ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES Accepted Batteries 4 (Four) AA: Lithium Recommended
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Video Output Signal CVBS 1Vpp @ 75 Ohm
Battery Life on 4x AA Up to 7 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 230x152x86 mm
Weight 1.2 kg
Operating Temperature -40°C .. +50°C
Storage Temperature -55°C .. +65°C
Body Material Hard-Anodized Aluminum
Warranty 7 Years, Limited

Batteries not included
