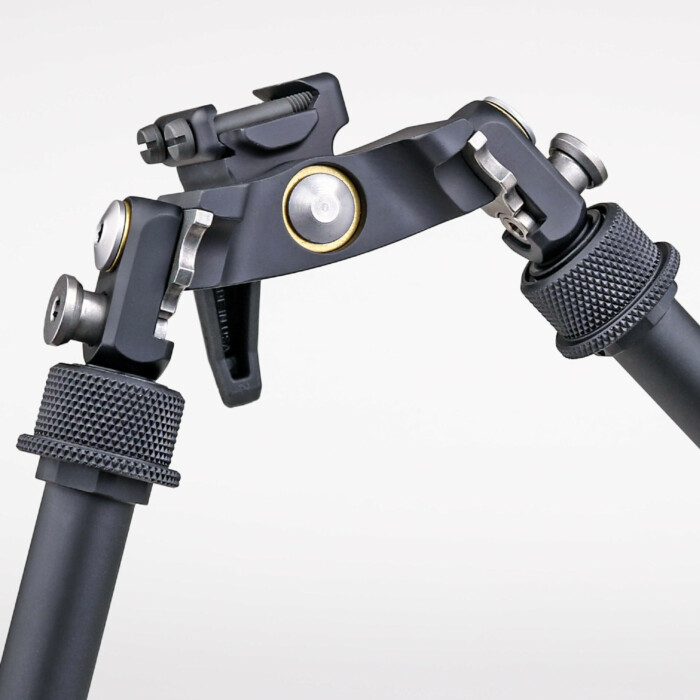

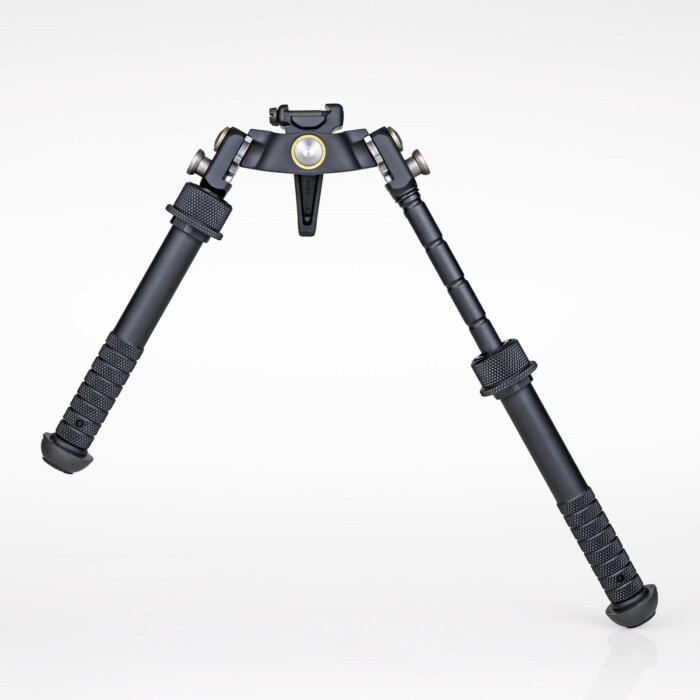

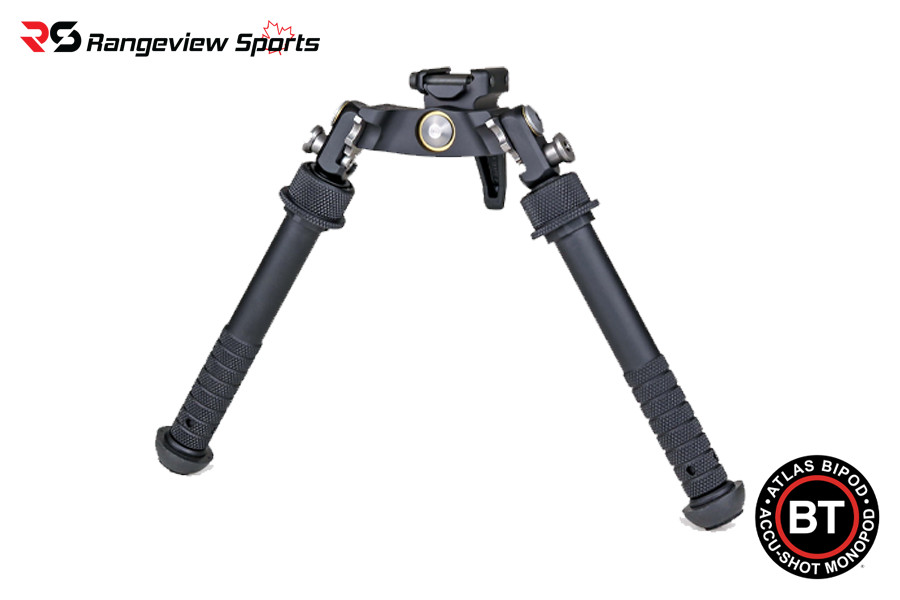

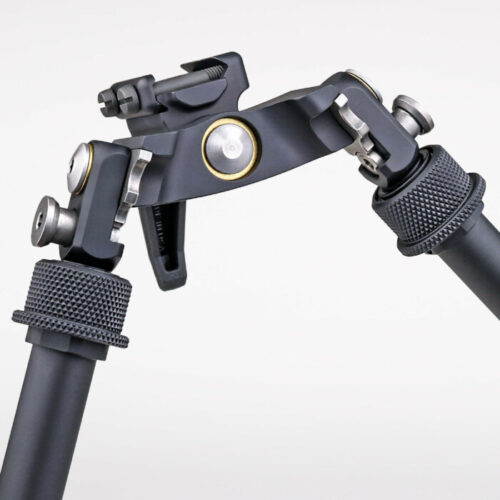

BT Atlas BT65: GEN 2 CAL Atlas Bipod – Picatinny Mount
The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature.
The BT65 mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly.
Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc®.” Read how to adjust the Pod-Loc® lever below.
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.
NSN 1005-01-715-0851
- Height Range: 4.9 – 9.2″ (6.4” at 90°)
- Preloaded Cant: 63 degrees
- Position Button 0.5″ diameter

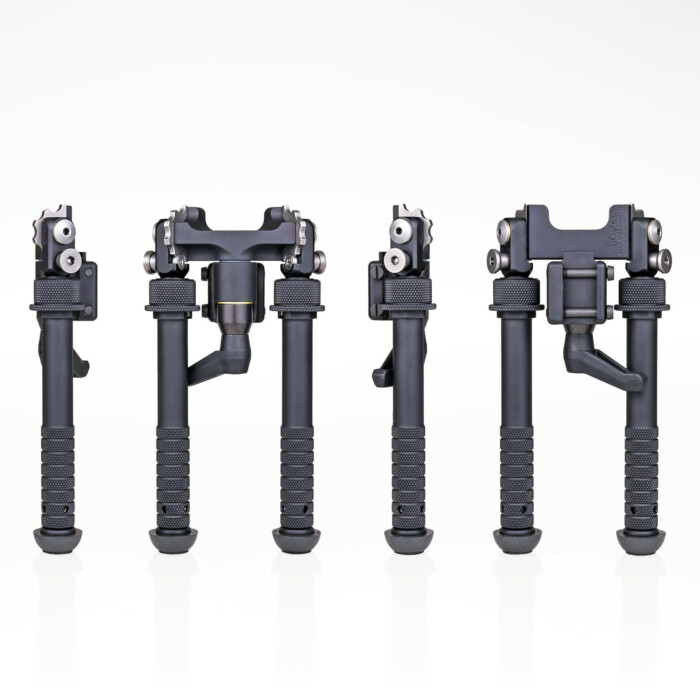

- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 12.9 ounces
- Footprint: 9–12.5″
- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
- Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
- Standard soft, durable rubber feet that are suitable for many surfaces included
- Optional 3” Leg Extensions to increase height
- Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
- Optional mounting systems available for Accuracy International and Sako rifles
Item Number: BT65
