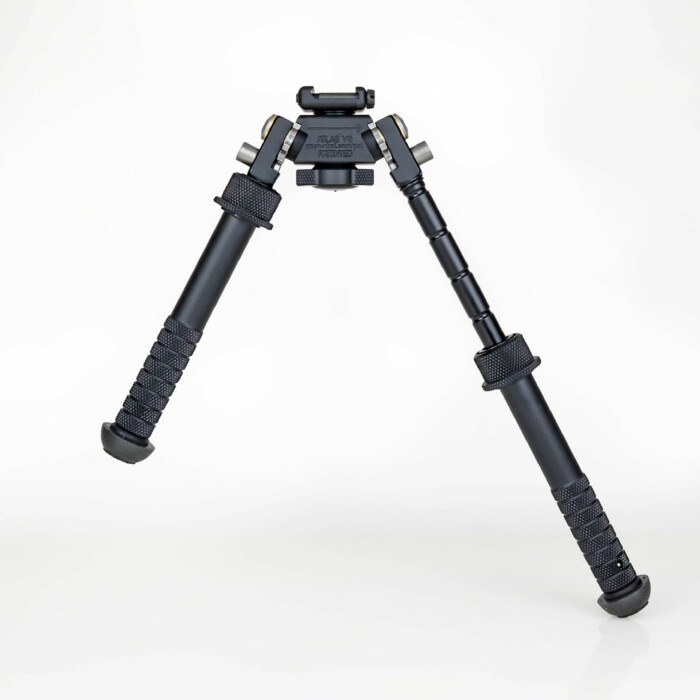

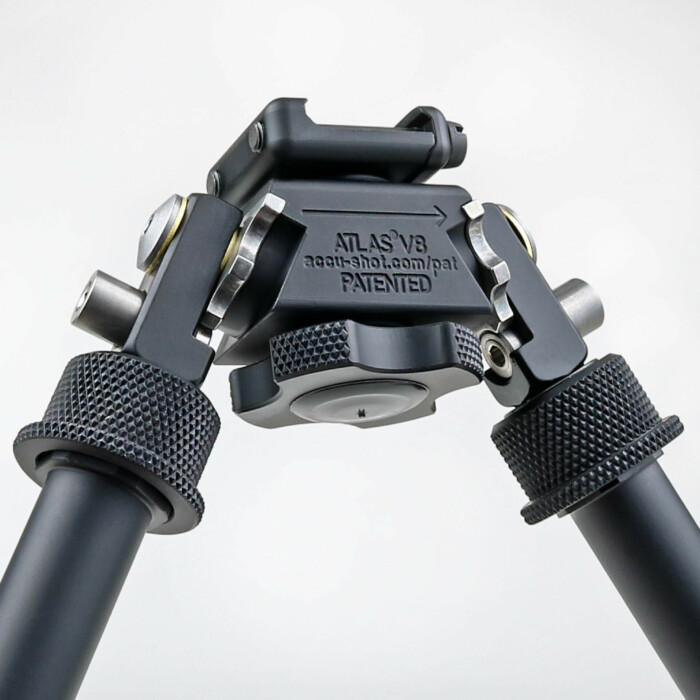

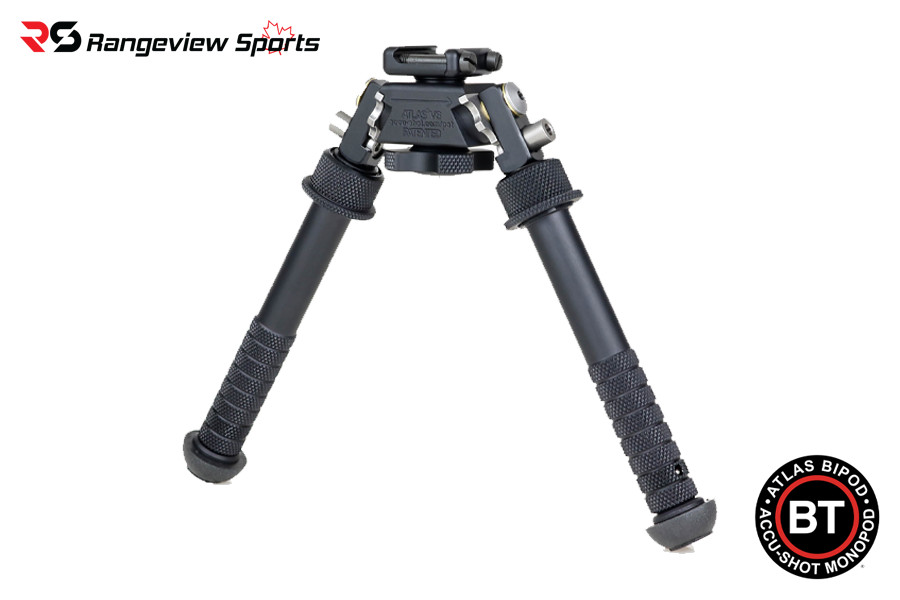

BT Atlas BT10: V8 Atlas Bipod – Picatinny Mount
The BT10 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly.
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.
Selected for SOCOM MK14 MOD 2. NSN 1005-01-601-0007 (for complete system)
- Height Range: 4.8 – 9.1″ (6.3” at 90°)
- Preloaded Pan: 30 degrees
- Preloaded Cant: 30 degrees
- Position Button 0.36″ diameter

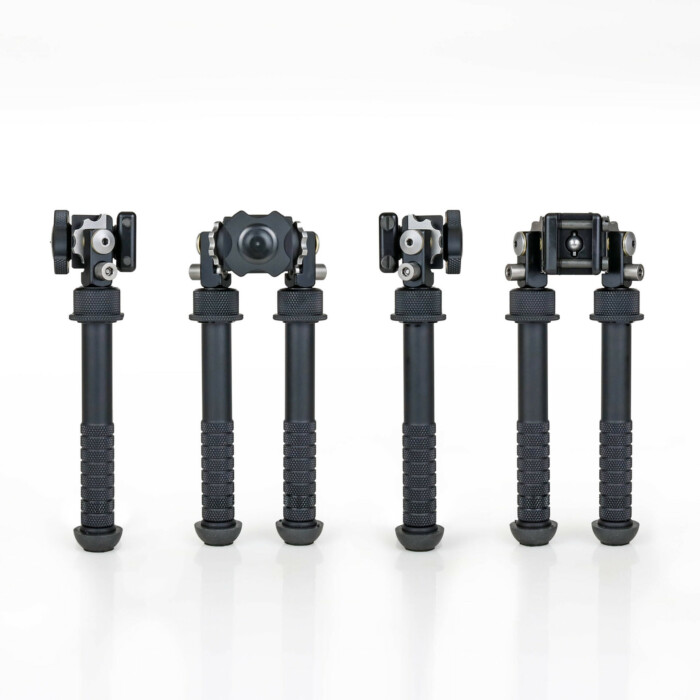

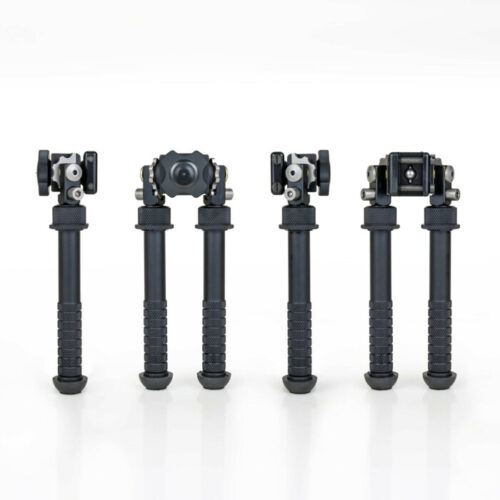

- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Weight: 11.0 ounces approx.
- Footprint: 8–11″
- Atlas V8 Series Bipod Video Tutorial
- UHMW components used for smooth tracking
- Preload on Pan and Cant can be tightened by means of the knurled knob
- Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
- Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
- Standard soft, durable rubber feet that are suitable for many surfaces included
- Optional 3” Leg Extensions to increase height
- Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
- Optional mounting systems available for Accuracy International and Sako rifles
Item Number: BT10
