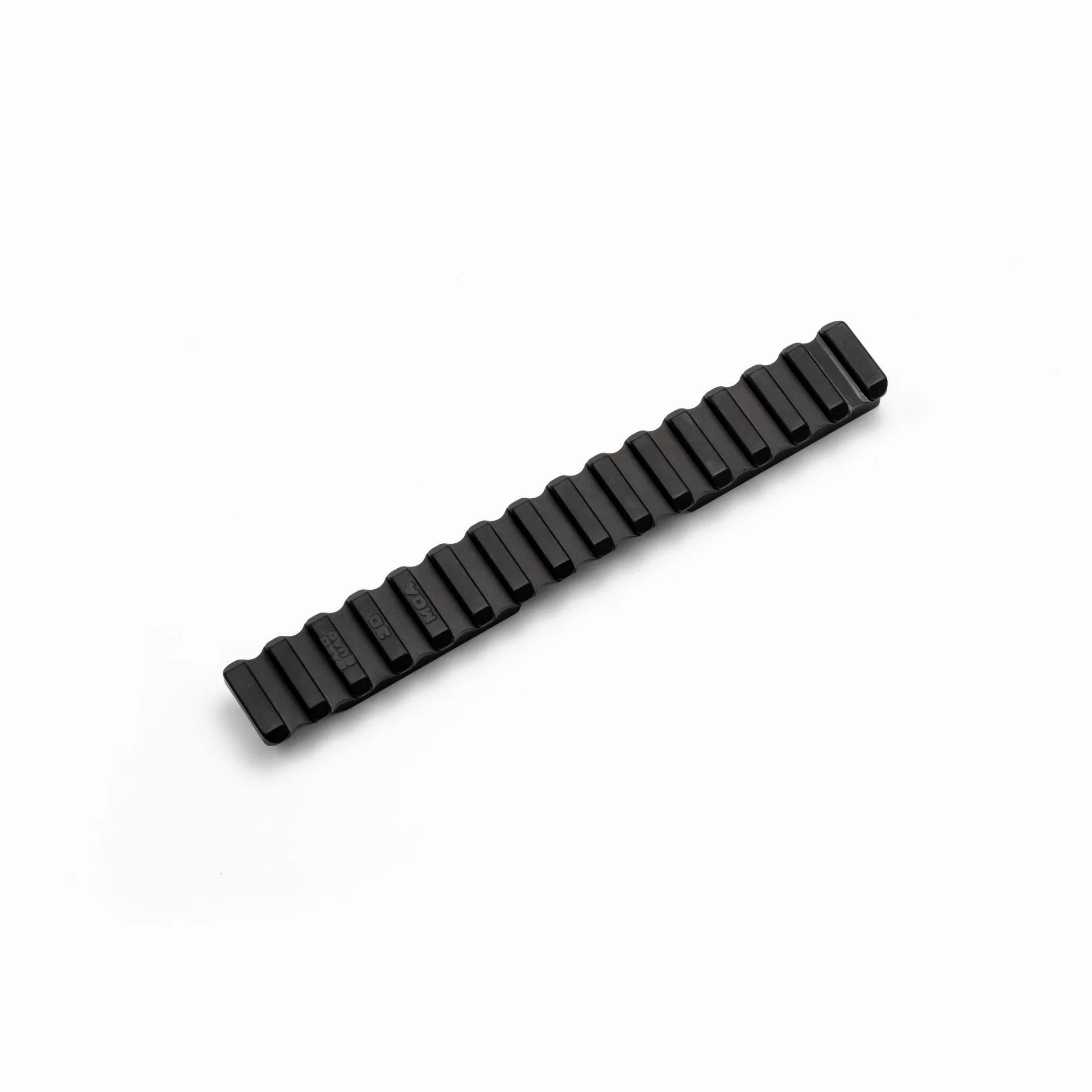

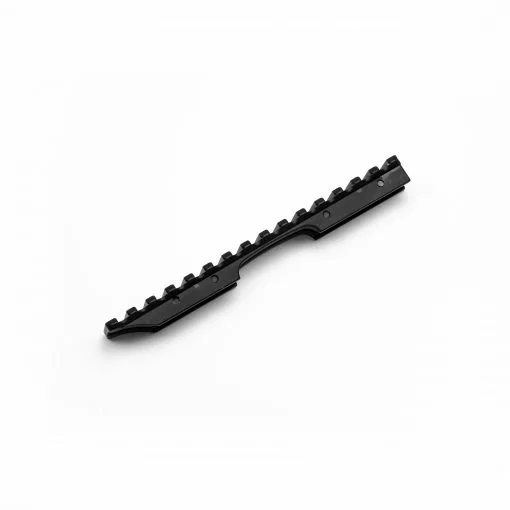

Area 419 Sako Quad Scope Base 30 MOA
This base is made from a single piece of T7075 aluminum and is designed to slide onto the dovetail and be clamped down with a force that is consistent across the entire rail – and strong enough that your Sako Quad will never budge it. For added security they have added a recoil lug at the rear of the base, creating a mechanical stop for the base. Bases will come Type III black hardcoat anodized and will come with the necessary 3mm hex key for torquing the clamp screws. Recommended torque spec: 22 in/lb (2.5 NM)
The rail comes in a 30MOA cant as it is meant for people pushing their rimfires out to 300+ yards. They also added real estate to the front of the rail to allow you to move your optic forward. This helps on higher powered scopes when coupled with the smaller stocks that are normal on a rimfire. This base is a little taller than the popular set-screw models (rail adds a total of about 1/2″ of height to the dovetail) but by using lower height rings/mounts you should be able to retain a similar over bore height and maintain a good cheek weld without any riser.
Item Number: 419-ISR-SAKO-30
