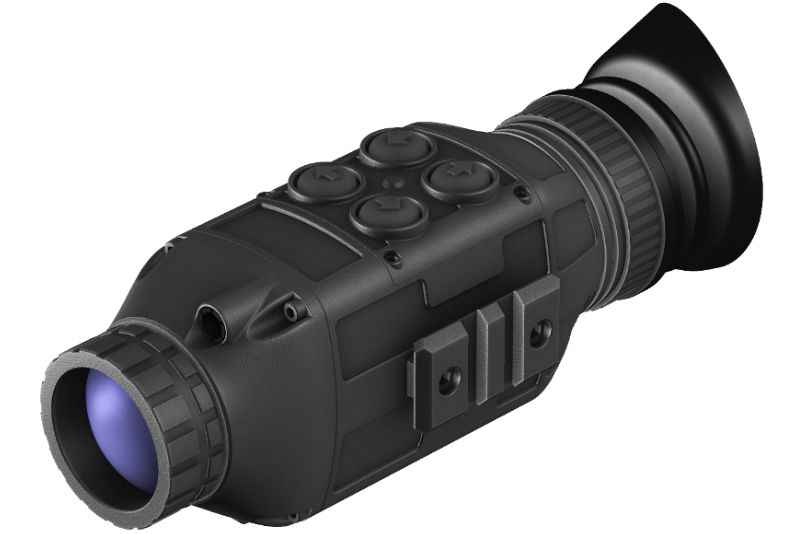

GSCI TI GEAR M625 Monocular
*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***
The TI-GEAR-M625 is the professional-grade thermal monocular designed for multiple applications that involve reconnaissance and tactical surveillance at short-and medium-range distances.The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-M625. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
Apart from hand-held, helmet-mounted configurations, the TI-GEAR-M625 can easily be converted into a full-feature thermal weapon and clip-on sight. The TI-GEAR-M625 is fully dust-and waterproof, meets and exceeds modern standards. The TI-GEAR-M625 is designed for both professional users and outdoor enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.
Specifications
| Optical Magnification |
1X |
| Objective Lens System |
25mm |
| Field of View |
24.5°x18.5° |
| Focusing Range |
0.5m .. Infinity |
| Diopter Adjustment Range |
-6 .. +4 |
| Eyerelief |
Min. 40mm |
| FPA Type |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
| FPA Resolution and Pitch |
640X480, 17μm |
| FPA Sensitivity (NETD) |
<50mK |
| FPA Refresh Rate |
50Hz |
| Digital Zoom |
1X, 2X, 4X, 8X |
| Internal Display |
Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600 |
| Imaging Modes |
Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes |
| Shot-Initiated FOV Feature (SIF) |
Optional: Built-In Adjustable Shock Sensor |
| Digital Passive Stadiametric Rangefinder (SRF) |
Yes |
| Digital Detail Enhancement Feature (DDE) |
Yes |
| Wide Dynamic Range Feature (WDR) |
Yes |
| Stow Safety Feature (SSF) |
Yes |
| Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) |
Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass |
Optional |
| Pitch / Roll / Azimuth Indications |
Optional |
| Real-Time Date-Time Stamp |
Yes: Simplified, Extended, DTG Formats |
| Digital Video Recorder with Real-Time Stamp |
Optional: Comes with removable 32GB microSD card |
| Electronic Reticles |
Optional: 8+8 Patterns, Easy Zeroing / Calibration |
| Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) |
830m / 1130m |
| Hand-Held Capability |
Hand-Held + Helmet-Mountable + Tripod-Mountable |
| Conversion to Clip-On (In-Line) Sight |
Yes |
| Conversion to Standalone (Direct-View) Sight |
Yes |
| User Profiles (Configurable) |
Yes: 8 |
| Automatic/Manual Pixel Masking |
Yes |
| Reset to Factory Defaults |
Yes |
| External Video Feed Protection |
Yes |
| Automatic Power Down Control |
User-Configurable: 10 .. 60 minutes of inactivity |
| Accepted Batteries |
2 (two) CR123 of Any Type: Lithium / Rechargeable |
| Universal Port |
Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
| Battery Life on 2x CR123 |
Up to 7 Hours |
| Environmental Protection |
Min. IP67, Nitrogen-Purged Housing |
| Dimensions |
140 x 60 x 60 mm |
| Weight |
365 grams |
| Operating Temperature |
-40°C .. +50°C |
| Warranty |
7 Years, Limited |
| Made In Canada |
ITAR-Free |
