GSCI Multi-Channel Fusion System [QUADRO-S]

$16,475.00

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

Quantity In stock
Buy it now
MPN: QUADRO-S
SKUHMV6-35-F1.0-640

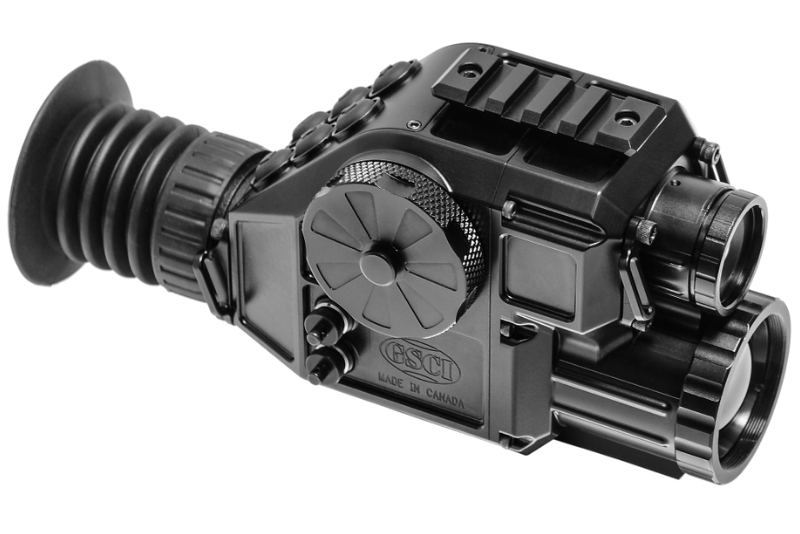

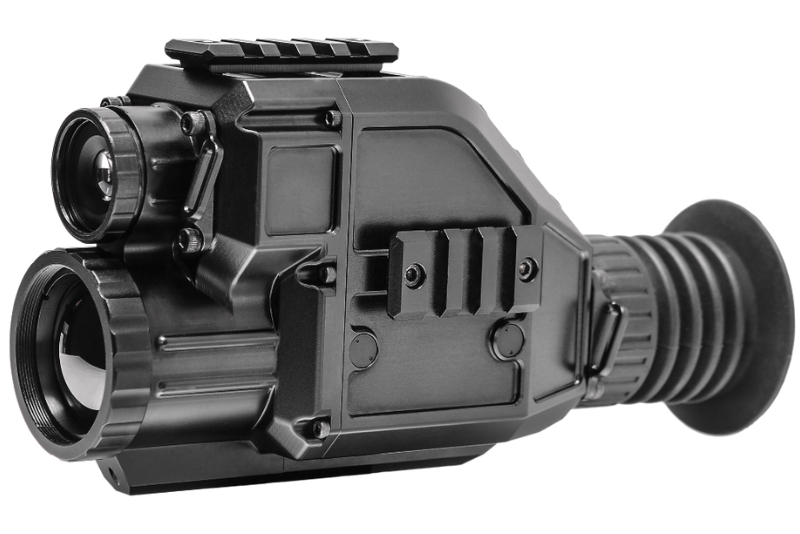

GSCI Multi-Channel Fusion System

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation, as well as aiming and engagement at short- and medium-range distances. Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness. The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance.

  • 100% Target Detection Capability
  • Compact and Versatile
  • Multi-Mode 24/7 Operation
  • High Situational Awareness
  • Auto-NUC: No Calibration Needed
  • Universal Power Solution

Specifications

OPTICAL PARAMETERS Optical Magnification 1.4X
Field of View 17.7°x13.3°
Focusing Range 0.5m .. Infinity
Eyepiece Single
Diopter Adjustment Range -6 .. +4
Eyerelief Min. 50mm
SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES Shot-Initiated FOV Feature (SIF) Optional: Built-In Adjustable Shock Sensor
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Digital Edge Detection Feature (DED) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Power Saving Mode Yes
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with Removable 32GB microSD Card
Electronic Reticles Optional: 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) 1660m / 2250m
Hand-Held Configuration Yes
Conversion to Clip-On (In-Line) Sight Yes
Conversion to Standalone (Direct-View) Sight Yes
Tripod-Mountable Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
THERMAL (LWIR)CHANNEL FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640×480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X
Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
DAY/NIGHT (VNIR) CHANNEL Sensor Type High-Performance CCD
Sensor Size 1/3”
Resolution 800×600
Sensitivity Up to 0.1Lux
Night Boost Mode Yes
VNIR Modes Day/Night



DISPLAY Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600
Internal Display Contrast >10000:1
IMAGE FUSION Type Real-time, Electronic
Fused Channels LWIR + VNIR
Parallax Compensation Electronic, Adjustable
Heat Signature Opacity Range User Adjustable: 0% .. 100%
ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES Accepted Batteries 4 (Four) AA: Lithium Recommended
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Video Output Signal CVBS 1Vpp @ 75 Ohm
Battery Life on 4x AA Up to 7 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 170x91x70mm
Weight 750 grams
Operating Temperature -40°C .. +50°C
Storage Temperature -55°C .. +65°C
Body Material Hard-Anodized Aluminum
Warranty 7 Years, Limited

Batteries not included
