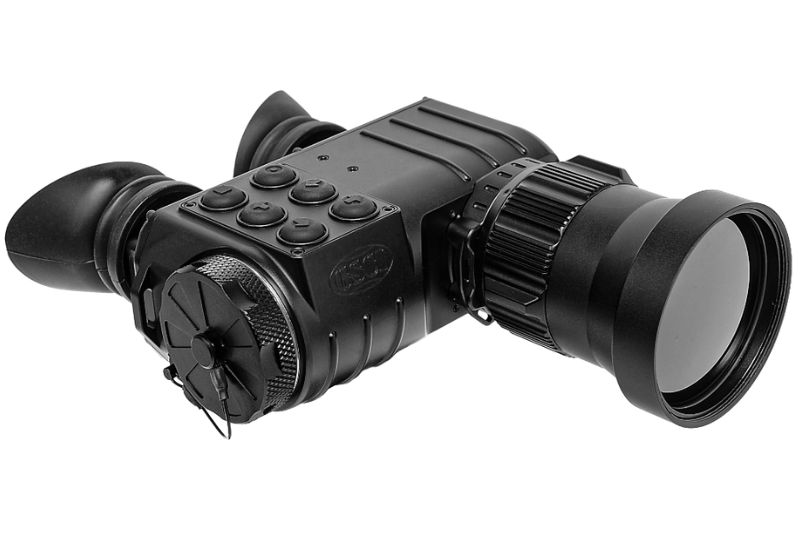

GSCI Long-Range Tactical Thermal Binoculars [UNITEC-B75-64]

$14,350.00

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

Quantity In stock
MPN: UNITEC-B75-64
SKUTBV6-75-1.3-640

GSCI Long-Range Tactical Thermal Binoculars

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

The UNITEC-B75-64 is a thermal binocular system designed for multiple applications that involve reconnaissance and tactical surveillance at medium- and long-range distances.

The latest generation silent and Auto-NUC sensor is at the base of the UNITEC-B75-64. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.

The UNITEC-B75-64 has dual-AMOLED display system that designates one hi-res AMOLED display for each individual eyepiece and has no moving parts inside. UNITEC-B75-64 can be comfortably operated for prolonged viewing periods without eye strain.

With full-aluminum enclosure, the UNITEC-B75-64 is all-around professional thermal imaging solution for day- and night-time operations that demand long-range observation capabilities.

  • Fast 75mm Objective Lens
  • Auto-NUC FPA: 640×480
  • Optional Built-In Video Recorder
  • Up to 8 Hours Battery Life
  • ITAR-Free System: Available for Export

Features

  • High-Resolution Uncooled FPA with Auto-NUC: 640×480
  • Fast Refresh Rate: 50Hz
  • Quality and “Fast” Low-F-Number Germanium Lens
  • Ultra-Low Power Consumption
  • Optional Built-In Video Recorder
  • WDR and DDE Features for Image Enhancement
  • Stadiametric Rangefinder (SRF)
  • Stow Safety Feature (SSF)
  • Completely Silent System Operation
  • Interchangeable Optics
  • Precision-Machined Rugged Aluminum Body
  • Video-out for External Display and Recording
  • High-Resolution Colour AMOLED Displays 800×600
  • 24-hour Operation
  • Manual and Automatic FPA Sensitivity Adjustment
  • Manual Display Brightness Adjustment
  • Black Hot / White Hot Polarity Control
  • Universal Power Solution: AA, USB-powered, etc.
  • Complete Dust– and Waterproof Protection
  • Made in Canada. Available for Worldwide Export
  • 7-Year Manufacturer’s Warranty

Specifications

Optical Magnification 3X
Objective Lens System 75mm
Field of View 8.3°x6.2°
Focusing Range 2m .. Infinity
Eyerelief Min. 20mm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640×480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X, 8X
Internal Display Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800×600
Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) 2500m / 3380m
Hand-Held Capability Yes
Tripod-Mountable Yes
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 4 (four) AA of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 4x AA Up to 8 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 181x142x71mm
Weight 930 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Made In Canada ITAR-Free

Batteries not included
