GSCI Close Quarters Engagement Thermal Imaging Clip-On Scope [TI-GEAR-C345]

$6,500.00

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

Quantity In stock
Buy it now
MPN: TI-GEAR-C345
SKUTMC4-45-1.1-384

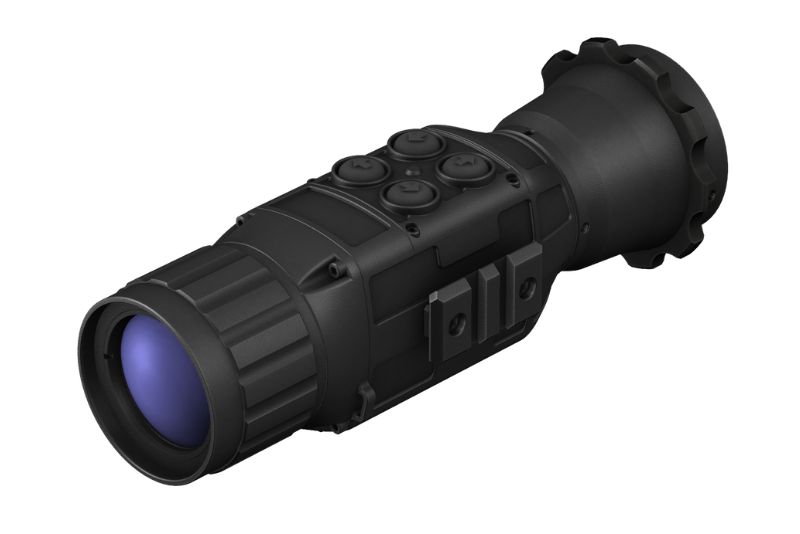

GSCI Close Quarters Engagement Thermal Imaging Clip-On Scope

*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***

The TI-GEAR-C345 is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TI-GEAR-C345 is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnaissance and tactical surveillance.

The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-C345. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.

The TI-GEAR-C345 is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-C345 is designed for both professional users and firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.

Specifications

Optical Magnification

1X

Objective Lens System

45mm

Field of View

8.3°x6.2°

Focusing Range

1.5m .. Infinity

FPA Type

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

FPA Resolution and Pitch

384×288, 17μm

FPA Sensitivity (NETD)

<50mK

FPA Refresh Rate

50Hz

Digital Zoom

1X, 2X, 4X

Internal Display

Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600

Imaging Modes

Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes

Shot-Initiated FOV Feature (SIF)

Built-In Adjustable Shock Sensor

Digital Passive Stadiametric Rangefinder (SRF)

Yes

Digital Detail Enhancement Feature (DDE)

Yes

Wide Dynamic Range Feature (WDR)

Yes

Stow Safety Feature (SSF)

Yes

Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display)

Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope

Integrated Compass

Optional

Pitch / Roll / Azimuth Indications

Optional

Real-Time Date-Time Stamp

Yes: Simplified, Extended, DTG Formats

Digital Video Recorder with Real-Time Stamp

Optional: Comes with removable 32GB microSD card

Electronic Reticles

Can be Enabled for Standalone Sight Configuration: 8+8 Patterns, Easy Zeroing / Calibration

Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m)

1500m / 2030m

Mounting to Dayscope

On-Rail, On-Scope Direct, On-Scope Via Clamp/Adapter

Optimal Dayscope Magnification Range

3X .. 12X

Hand-Held / Tripod-Mounted Capability

Yes: Hand-Held and Tripod-Mountable

Conversion to Standalone (Direct View) Sight

Yes

User Profiles (Configurable)

Yes: 8

Automatic/Manual Pixel Masking

Yes

Reset to Factory Defaults

Yes

External Video Feed Protection

Yes

Automatic Power Down Control

User-Configurable: 10 .. 60 minutes of inactivity

Accepted Batteries

2 (two) CR123 of Any Type: Lithium / Rechargeable

Universal Port

Video-Out, Remote Control and External Power (4VDC .. 15VDC)

Battery Life on 2x CR123

Up to 7 Hours

Environmental Protection

Min. IP67, Nitrogen-Purged Housing

Dimensions

183 x 60 x 60 mm

Weight

545 grams

Operating Temperature

-40°C .. +50°C

Warranty

7 Years, Limited

Made In Canada

ITAR-Free

Batteries not included
