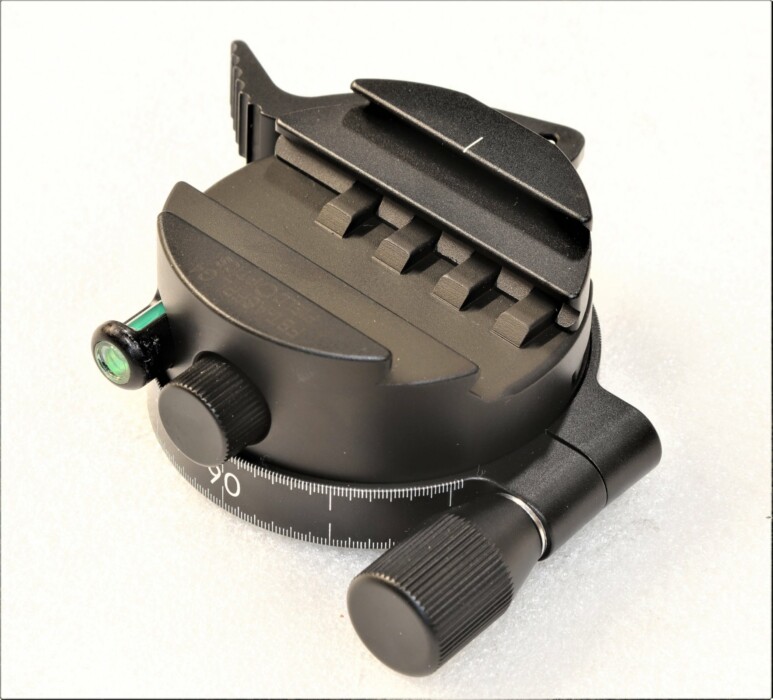

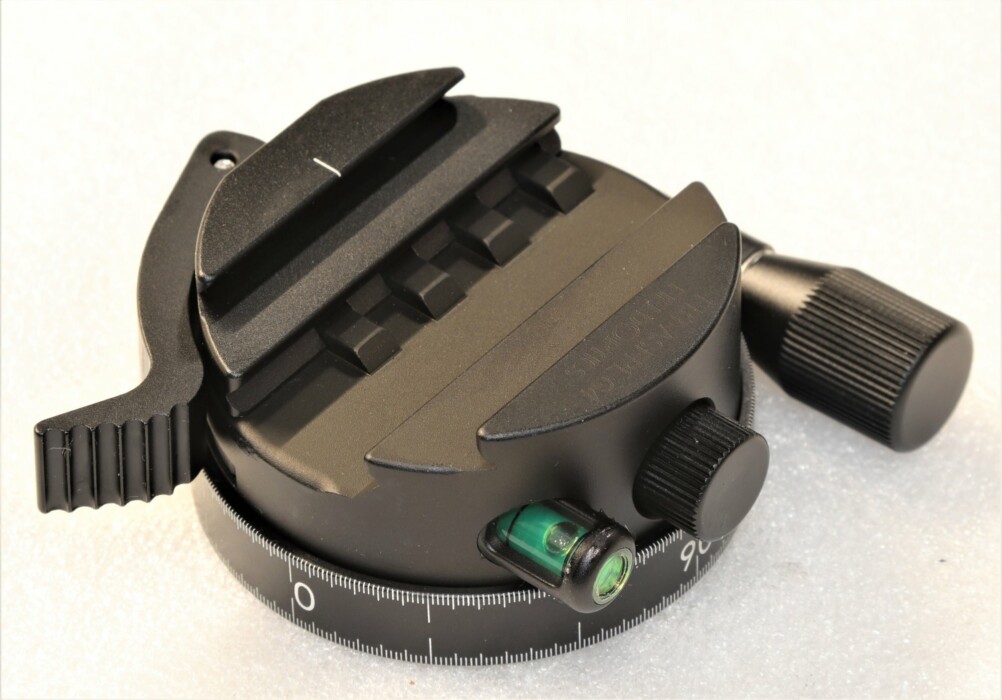

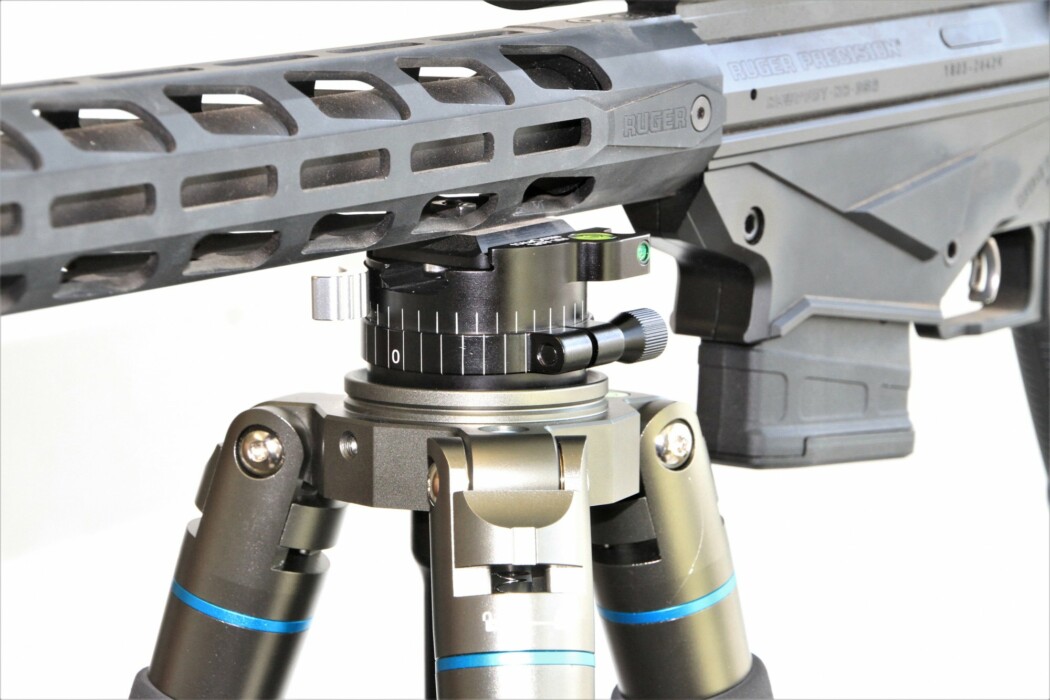

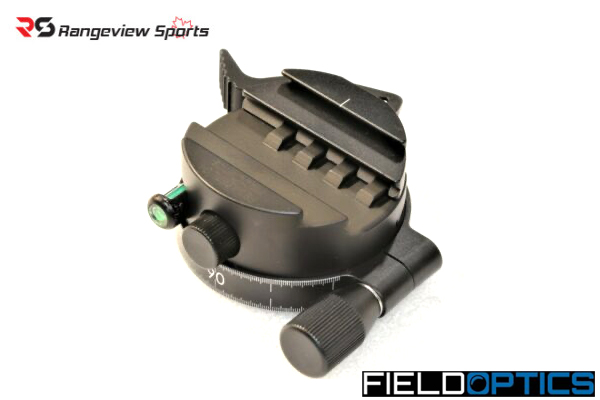

The Arca Swiss F-Picatinny Lever Clamp is a break thru in modern weapons support technology. It’s multi function mount system connects directly to any FBT Bowl Disk with the patent pending Band ClampTM System. The interlocking face groove and tension controlled Band Clamp provides smooth pan rotation independent of the bowl disk. The ASFPL is capable of mounting an Arca Swiss or Picatinny rail systems directly without the need for a QR plate. The adjustable Intilegent Lever ClampTM allows for fast, quick yet secure connect and release. The independent Band ClampTM tension control system allows smooth panning without having to releasing the Precision Bowl TensionerTM handle. The ASFPL can also be attached directly to other systems via. our Band Clap Adapter (sold separatly) and to most FORI tripod center tube top disks. The vertical tilt line level assures your weapon or optic is perfectly upright for PRS & LR shooting. Precision gradient markings help create accurate panoramic images and set vector headings. All CNC aircraft grade 6063-T6 aluminum construction.
Specifications:

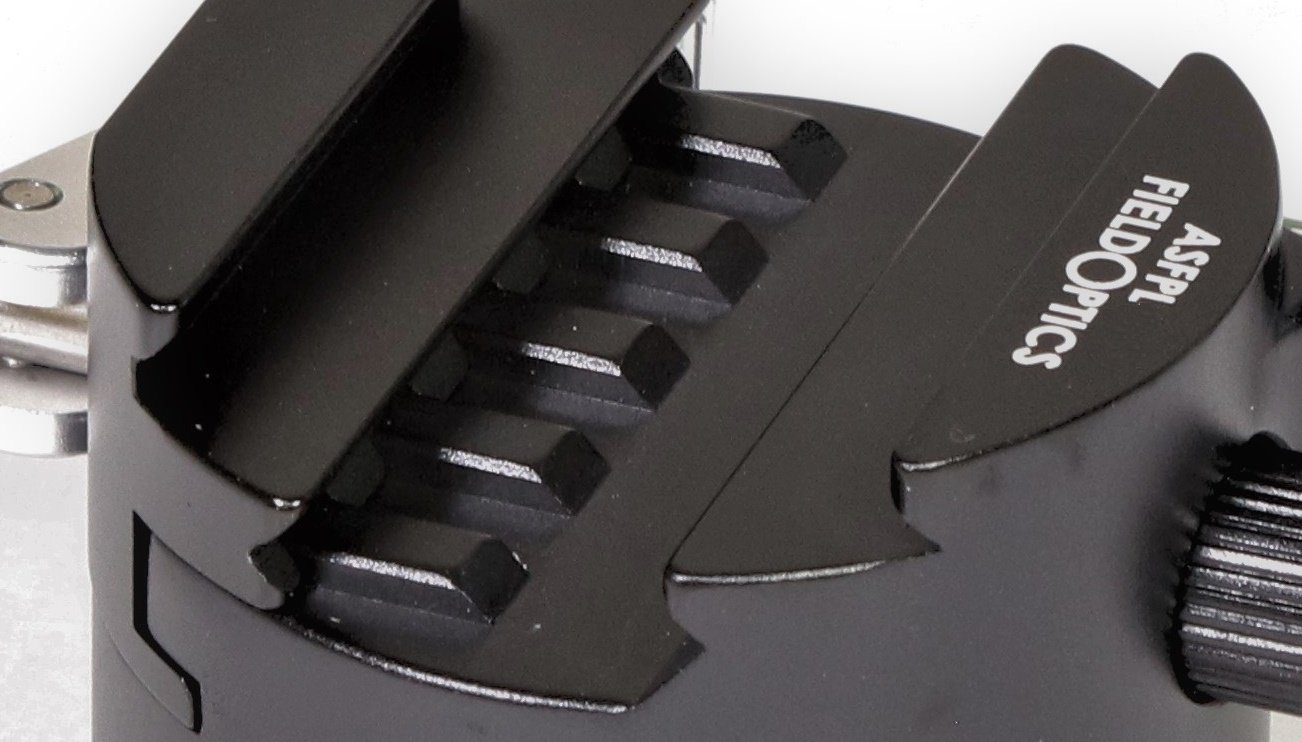

Incorporates our new F-PicatinnyTM recoil reaction system. Designed to integrate with our Band ClampTM System for smooth panning motion.
Weapon Mount Options: Both Arca Swiss & Picatinny
Independent Pan Rotation: Yes
QR Plate Style: Arca Swiss
Arca Swiss Reaction stops: No
Picatinny Reaction stops: Yes, F-PicatinnyTM
Adjustable lever tension: Yes, with Intilegent Lever Clamp SystemTM

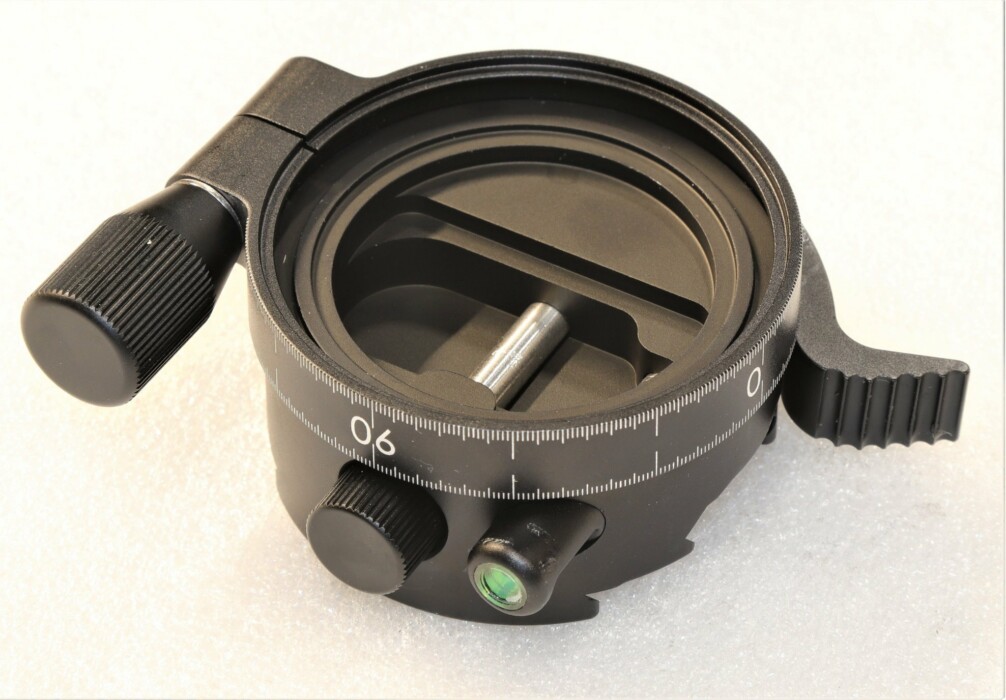

Head Interface: Band ClampTM interface for connection to a Precision Bowl TensionerTM disk. May also connect to a 3/8-16 stud by using an optional Band Clamp Adapter Disk.
Spirit Level: Yes, rear view precision vertical line level.
Weight: 4.6 oz
Dimensions: 2.3” dia x 7/8” tall
Construction: 6063-T6 AL alloy, hard anodize, CNC machined
