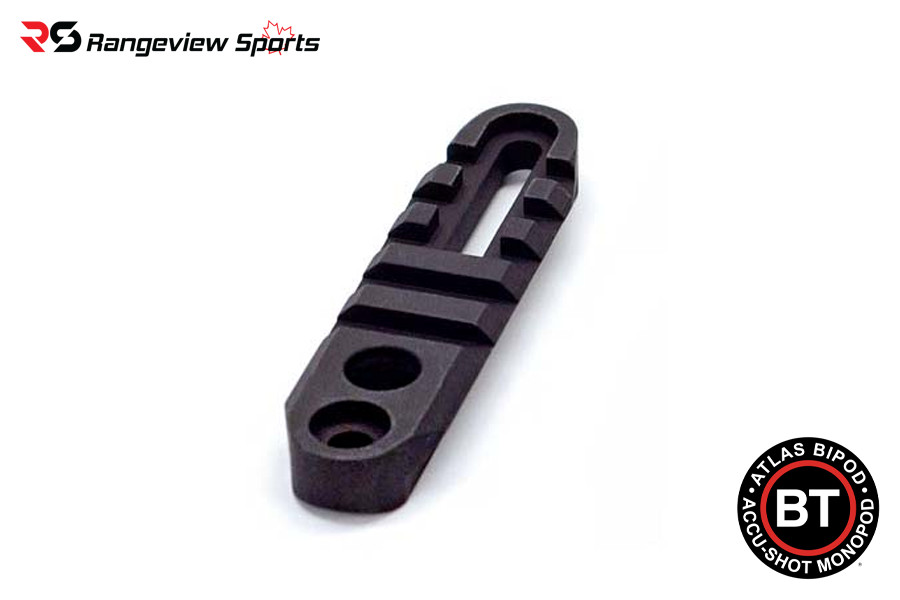

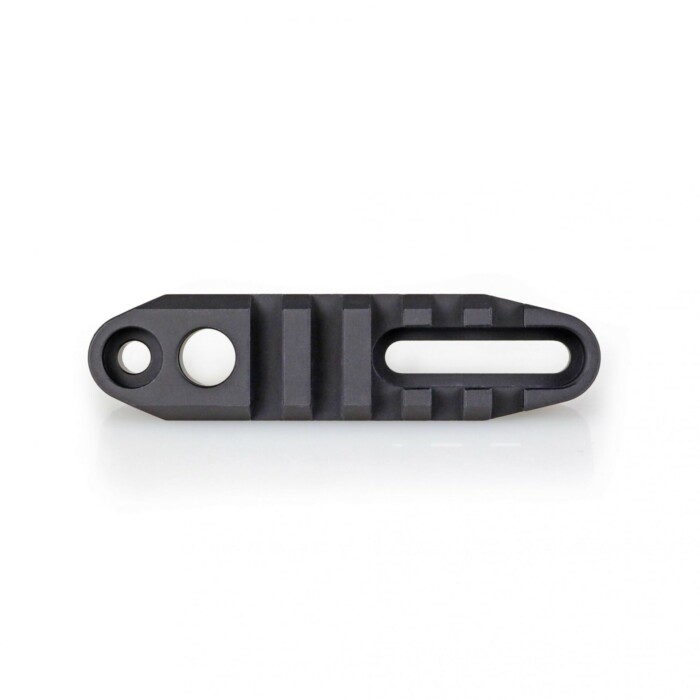

BT Atlas BT15: 3.35″ 1913 Picatinny Rail

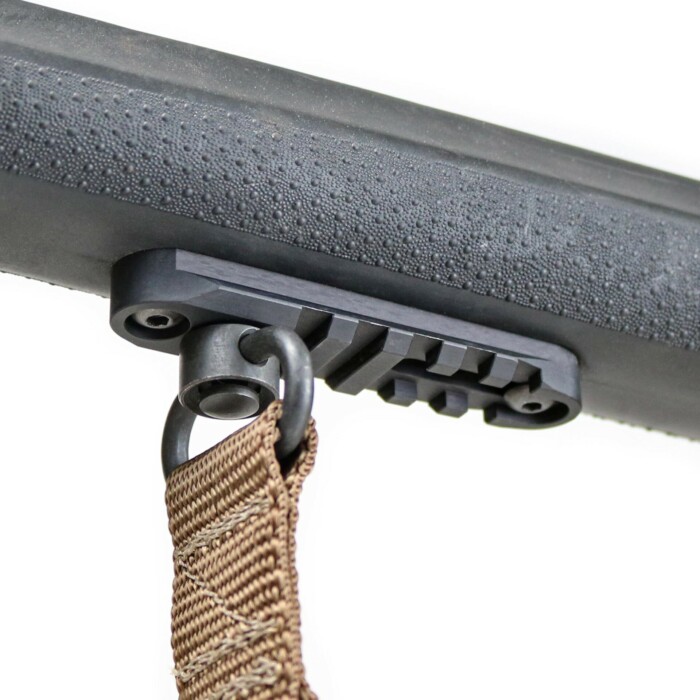

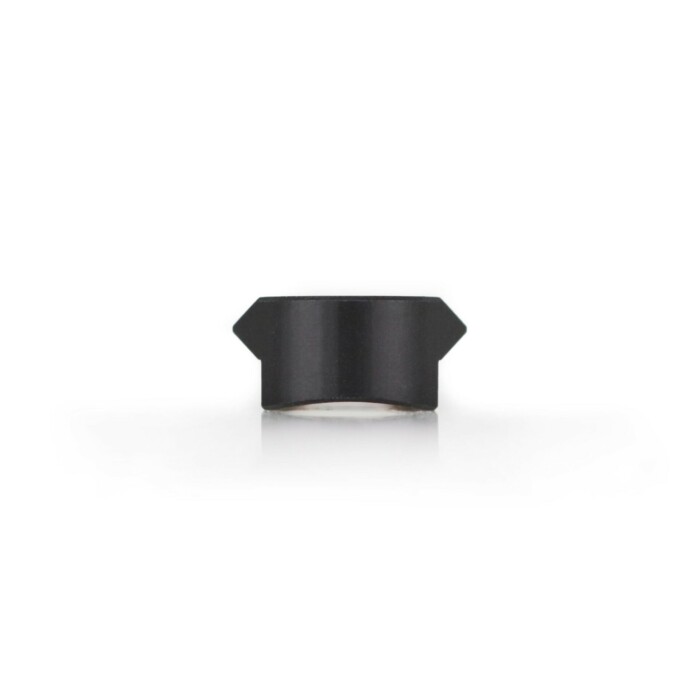

The BT15 – 3.35″ 1913 Picatinny Rail will accommodate hole patterns with a center to center spacing of 1.76 – 2.78″ and a relieved back to accommodate curved surfaces. It also has a flush cup allowing the use of Flush Cup sling swivels and sling studs (neither provided).
A standard sling stud and sling stud spacer can be used as one fastener or two button head machine screws can be used. NO HARDWARE INCLUDED. See BT1517 to attach this rail to the forearm of standard rifle stocks.
Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish. Available in black only.
Weight: 0.92 ounces
The BT15 can also be attached to a horizontal surface on the Butt section to attach our BT12, BT13 or BT31 Precision Rail Monopods.
Recommend Torque Specifications for Installation:
- For attaching accessories to metal hand guards: 35 in/lbs
- For attaching accessories to polymer hand guards: 15 in/lbs
- Installation torque values are not minimums, they are recommended limits
Item Number: BT15
